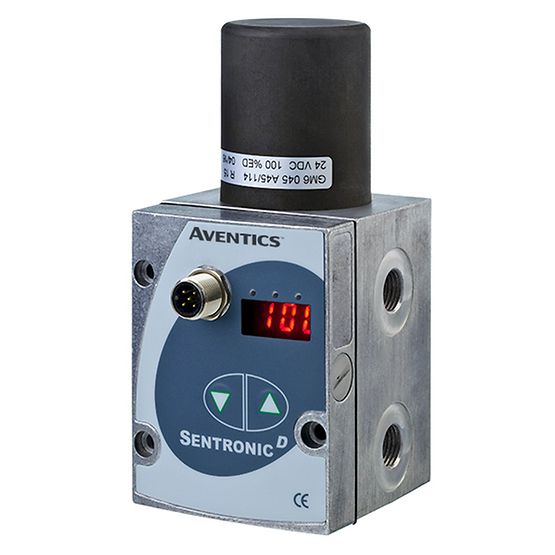

Aventics 609 SentronicD Proportional Regulator, P\n: 609190611

Body Material: Light Alloy
Flow (Cv) / Flow (Kv): 1.39 / 1.20
Function: 3/2 Normally Closed
Pipe/Port Type & Size: G 3/8 (ISO 228/1)
Product Type: Solenoid Valve
Media: Air, Inert Gas
Product Weight: 1.13 kg
Coil Class: H
Min to Max Ambient Temperature: 0 - 50 °C
Min to Max Fluid Temperature: 0 - 60 °C
Orifice Size: 8 mm
Voltage: 24 Volts DC
Watt Rating: 40 W
Sealing Material: NBR + FPM
Media Type: Air
Min - Max Operating Pressure (Air): 0 - 10 bar
