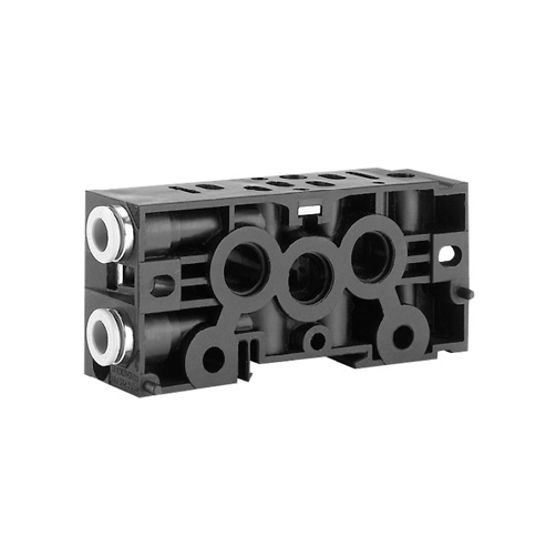

Aventics 8985121092, Base plate, ports 2 and 4 on side

Type: Base plate
Direction of pneumatic port (2,4): On the side
Compressed air connection 2 / 4: G 1/8
Direction of pneumatic port (3,5): On the side
Exhaust type: Ports separated
Exhaust (3,5): With directional exhaust (3/5)
Frame size: 26 mm
Standards: ISO 15407-1
Working pressure min.: -0.95 bar
Working pressure max: 16 bar
Min. ambient temperature: -25 °C
Max. ambient temperature: 70 °C
Min. medium temperature: -25 °C
Max. medium temperature: 70 °C
Medium: Compressed air
Max. number of valve positions: 1
Grid dimension: 27 mm
Mounting screw: with hexagon socket
Tightening torque for mounting screws: 4 Nm
Material base plate: Polyamide fiber-glass reinforced
Seal material: Acrylonitrile butadiene rubber
