Aventics

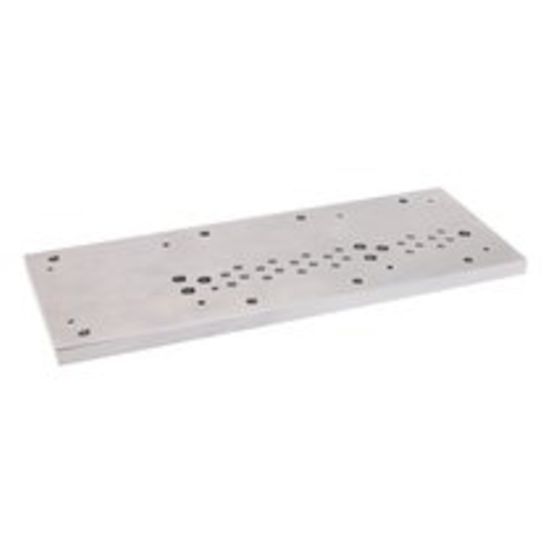

Aventics R412026474, Übergangsplatte
Aventics R412026474, Übergangsplatte
Regular price
€917,86
Regular price
Sale price
€917,86
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 10.12.2025
Couldn't load pickup availability
SKU: SKU:R412026474
Type: Transition plate
Type: External assembly
Compressed air connection 1: G 1/8
Compressed air connection 2 / 4: M7
Port 3 / 5: G 1/8
Compressed air connection 12: G 1/8
Compressed air connection 14: M5
Scope of delivery: Transition plate, sealing kit, mounting screws, gasket
Working pressure min.: -0.95 bar
Working pressure max: 10 bar
Min. ambient temperature: -10 °C
Max. ambient temperature: 60 °C
Min. medium temperature: -10 °C
Max. medium temperature: 60 °C
Medium: Compressed air
Max. number of valve positions: 8
Housing material: Stainless Steel
View full details
Type: External assembly
Compressed air connection 1: G 1/8
Compressed air connection 2 / 4: M7
Port 3 / 5: G 1/8
Compressed air connection 12: G 1/8
Compressed air connection 14: M5
Scope of delivery: Transition plate, sealing kit, mounting screws, gasket
Working pressure min.: -0.95 bar
Working pressure max: 10 bar
Min. ambient temperature: -10 °C
Max. ambient temperature: 60 °C
Min. medium temperature: -10 °C
Max. medium temperature: 60 °C
Medium: Compressed air
Max. number of valve positions: 8
Housing material: Stainless Steel
