Dold

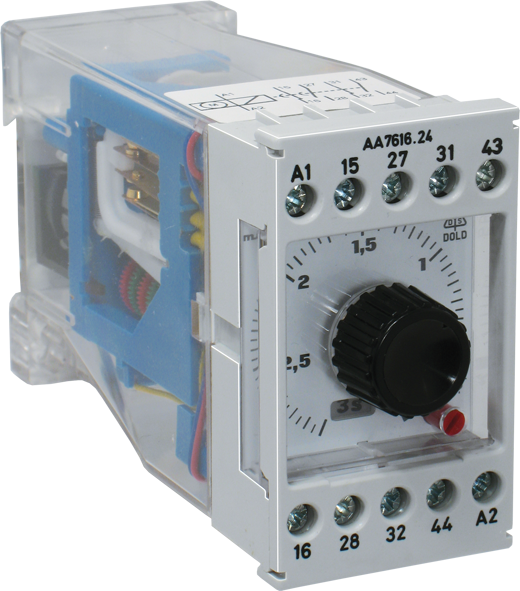

Dold AA7616.24/100 50/60HZ 115V0,15S-30H, Timer, On-delay, sku: 0010905
Dold AA7616.24/100 50/60HZ 115V0,15S-30H, Timer, On-delay, sku: 0010905
Regular price
€288,99
Regular price
Sale price
€288,99
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0010905
Time dependent controls
| Width: | 45 mm |
| Time function(s): | On-delay |
| Nominal voltage: | AC |
| Time range: | 0,15 s - 60 h |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | AA 7616 |
- Power ON-delay relay according to EN 61812-1
- Delay up to 60 h
- 6 switchable time ranges, adjustable on front side
- Repeat accuracy ≤ ± 0.5 % (≤ ± 1 % for ranges 3 s and 6 s)
- Time lapse display
- Switching position display (except for EH 7616)
- With instantaneous contact
- Available no-voltage safe
- EF 7616: front side, protected against beam water, IP 65
- AA 7616: width 45 mm
EC 7616: front surface 48 x 72 mm
EF 7616: front surface 72 x 72 mm
EH 7616: front surface 96 x 96 mm
