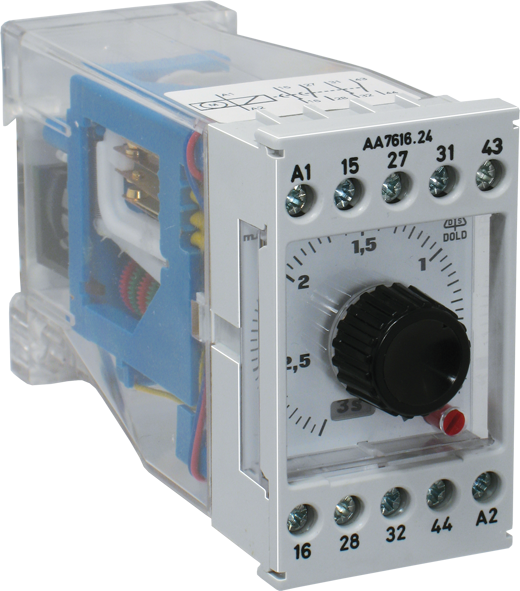

Dold AA7616.32 AC50/60HZ 42V 0,15S-30H, Timer, On-delay, sku: 0000688

Time dependent controls

• Power ON-delay relay according to EN 61812-1
• Delay up to 60 h
• 6 switchable time ranges, adjustable on front side
• Repeat accuracy ≤ ± 0.5 % (≤ ± 1 % for ranges 3 s and 6 s)
• Time lapse display
• Switching position display (except for EH 7616)
• With instantaneous contact
• Available no-voltage safe
• EF 7616: front side, protected against beam water, IP 65
• AA 7616: width 45 mm
  EC 7616: front surface 48 x 72 mm
  EF 7616: front surface 72 x 72 mm
  EH 7616: front surface 96 x 96 mm
