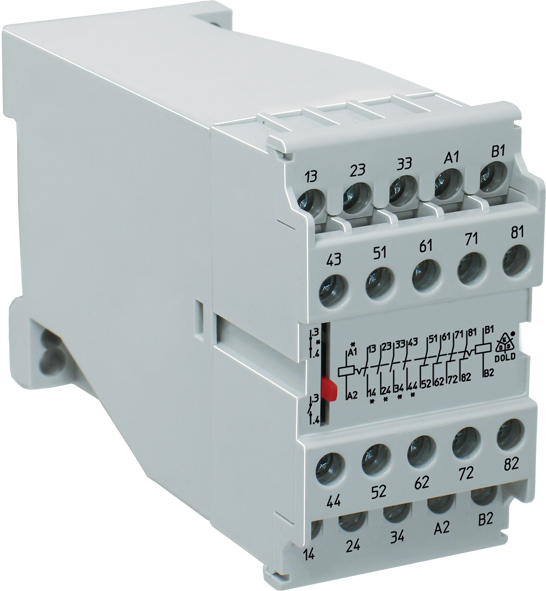

Dold AD8851.18 DC220V, Latching relay, sku: 0026476

The bistable function of the AD 8851 latching relay is realised by two hinged armature magnet systems that interlock with each other. The relay has a solid torsion-resistant mounting frame that supports both magnet systems and the common contact block, allowing the relay to withstand even the toughest mechanical loads. On all types, a switch lever located on the front panel allows manual magnet system adjustment and indicates the magnet or contact position.

• According to IEC/EN 61810-1
• Manual operation possible
• Contact position indication via control lever
• Max. 4 NC contacts, 4 NO contacts
• Width 45 mm
