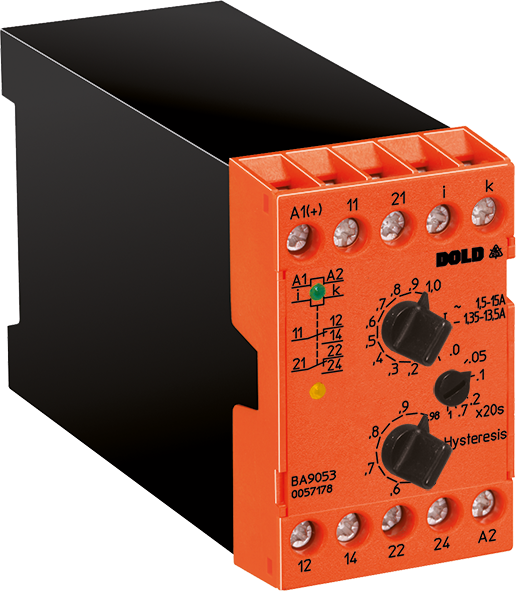

Dold BA9053/112 AC80-800mA AC230V, Current Relay, sku: 0057082

The current relay BA 9053 of the VARIMETER series monitors single phase DC or AC voltage systems(with 1 Measuring range for AC and DC). The adjustment is made via potentiometers on the front of the device. Early recognition and preventive maintenance avoid interruptions of electrical plants and provides a higher operational and plant safety.

• According to IEC/EN 60255-1, IEC/EN 60947-1
• To: Monitor DC and AC
• Measuring ranges from 2 mA to 25 A
• Optionally with 3 measuring ranges 0.1 up to 25 A
• High overload possible
• Input frequency up to 5 kHz
• Galvanic separation between auxiliary circuit - measuring ciruit
• Auxiliary supply AC and AC/DC
• Optionally with start-up delay
• With time delay, up to max. 100 sec
• Optionally with safe separation to IEC/EN 61140 (on request)
• As option with manual reset
• Option with fixed settings possible
• LED indicators for operation and contact position
• Width: 45 mm
