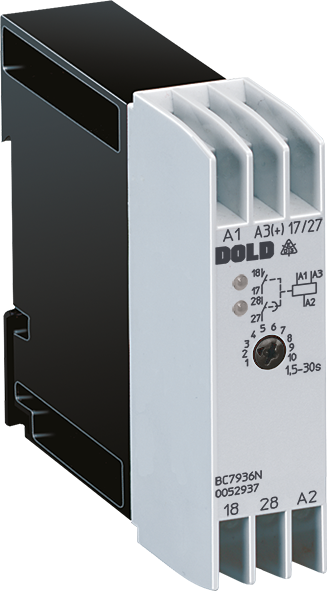

Dold BC7936N.38 AC/DC24V+AC220-240V 100S, Star-Delta-Timer, sku: 0058482

The BC 7936N star-delta timing relay is used for start-up control of threephase motors. The time in star operation is continuously adjustable in the respective time range. As standard, the device is offered in 4 time ranges and 3 contact changeover times.

• Star-delta relay according to IEC/EN 61812-1
• Time ranges up to 100 s
• Repeat accuracy ≤ 0.5 % + 10 ms
• 2-voltage design
• LED indicators for contact position
• 1 NO contact fleeting make, 1 NO contact operate delayed
• Width 22.5 mm
