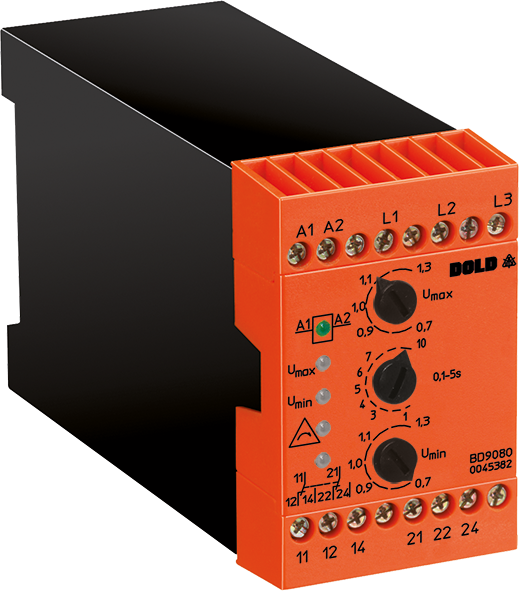

Dold BD9080.12 3AC690V UH AC400V 0,1-5s, Phase monitor, sku: 0045383
Dold BD9080.12 3AC690V UH AC400V 0,1-5s, Phase monitor, sku: 0045383
Regular price
€364,44
Regular price
Sale price
€364,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0045383
The Phase monitor BD 9080 of the VARIMETER PRO series monitors over and undervoltage, asymmetry, power failure as well as wrong phase sequence at three-phase networks. Early detection of impending failtures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.
| Width: | 45 mm |
| 1- / 3-phase: | 3 |
| Standard measuring range: | 3 AC 400 V |
| Measuring range max.: | 750 V |
| Auxiliary voltage: | AC, AC/DC |
| Output contacts: | 2 C/O contacts |
| Operate delay: | Yes |
| Enclosure design: | Switch cabinet |
| Type: | BD 9080 |
- According to IEC/EN 60255-1
- Monitoring of
- Under- and overvoltage
- Asymmetry
- Phase failure
- Phase sequence - Adjustable response delay between 0.1 ... 5 s
- One LED in each case for:
- Auxiliary voltage A1/A2
- Overvoltage Umax.
- Undervoltage Umin.
- Asymmetry / Phase sequence / Power failure
- Contact position - Closed circuit operation
- 2 changeover contacts
- As option available with open circuit operation
- Width 45 mm
