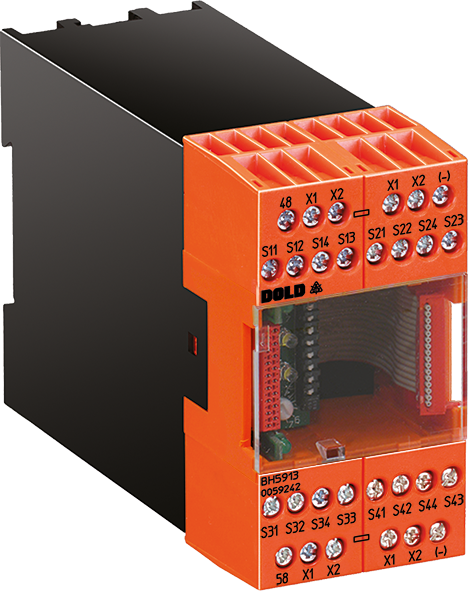

Dold BH5913.08/00MF0 DC24V, Input module, sku: 0059242
Dold BH5913.08/00MF0 DC24V, Input module, sku: 0059242
Regular price
€399,11
Regular price
Sale price
€399,11
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:0059242
Realization of fail-safe control circuits for protection of people and machinery.
| Width: | 45 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Application: | Emergency stop, Light barrier, Safety gate, Two-hand |
| Safety integrity level according to EN 574: | lll A, lll C |
| Galvanically isolated inputs: | Yes |
| Type: | BH 5913.08/_0___ |
- According to
- - Performance Level (PL) e and category 4 to EN ISO 13849-1: 2008
- - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- - Safety Integrity Level (SIL 3) to IEC/EN 61508
- Input module for realization of
- - 4 similar 2-channel inputs
- - Emergency stop circuits
- - Safety gate monitoring system
- - Two-hand control type IIIA, IIIC acc. to DIN/EN 574
- - Light curtain (LC type 4)
- The functions are selected via rotary switch
- 8 safety inputs
- 2 semiconductor outputs for status indication
- Broken wire and short circuit monitoring function with error indication
- LEDs for status indication
- Width
- BG 5913.08/_0__: 22.5 mm
- BH 5913.08/_0__: 45 mm
