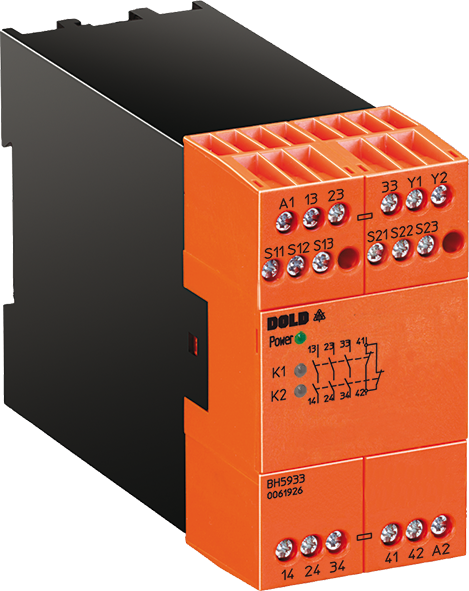

Dold BH5933.48/61 AC110V, Two-hand safety relay, sku: 0061925

Dold BH5933.48/61 AC110V, Two-hand safety relay, sku: 0061925

€445,67
€445,67
Sale Sold out
Taxes included.

📦 Ready for dispatch: 07.12.2025

SKU: 0061925

The BG 5933 or BH 5933 enables and disables a safety circuit in a safe way. It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements.

Width: 45 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Safety integrity level according to EN ISO 13851: lll C
Nominal voltage: AC, DC
Thermal current Ith max.: 5 A
Connection: Pluggable screw terminals
Output contacts max.: 1 NC contact, 3 NO contacts
Approvals: UL
Type: BH 5933
  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (maximum SIL) 3 to EN IEC 62061
    - Safety Integrity Level (SIL) 3 to EN 61508
    - Safety Level Typ III C according to EN ISO 13851
    - the safety regulations for two-hand controls on power-operated presses in metalworking ZH 1-456
  • Inputs for 2 push buttons with 1 NC and 1 NO contact
  • Output: 2 NO contacts, 1 NC contact or 3 NO contacts, 1 NC contact
  • Overvoltage and short circuit protection
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46228-1/-2/-3
  • BG 5933: Width 22.5 mm
    BH 5933: Width 45 mm
