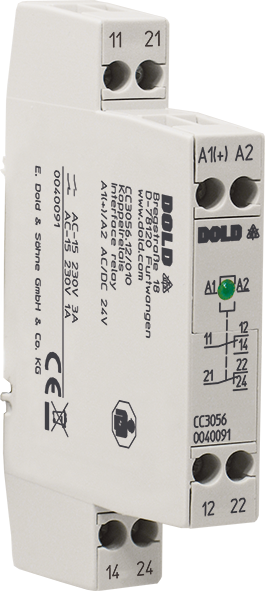

Dold CC3056.12/110 AC/DC24V, Interface relay, sku: 0040364
Dold CC3056.12/110 AC/DC24V, Interface relay, sku: 0040364
Regular price
€82,94
Regular price
Sale price
€82,94
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0040364
The interface relays CA 3056, CB 3056 and CC 3056 are used for contact multiplication and are suitable as a link between the control and power level. The interface relays are available with different contact combinations and partly for switching small loads.
| Width: | 11,5 mm |
| Nominal voltage: | AC, AC/DC |
| Initiator triggering: | Yes |
| Suppressor circuit on the coil input: | Yes |
| Thermal current Ith max.: | 5 A |
| Output contacts max.: | 2 C/O contacts |
| Enclosure design: | Switch cabinet |
| Type: | CC 3056 |
- According to IEC/EN 60947-5-1
- LED indication
- Optionally with 1 NO contact, 1 NC contact, 1 C/O contact, 2 C/O contacts, 2 NO contacts
- Optionally with MOV on input to achieve higher surge immunity
- Width: 11.5 mm
