Dold

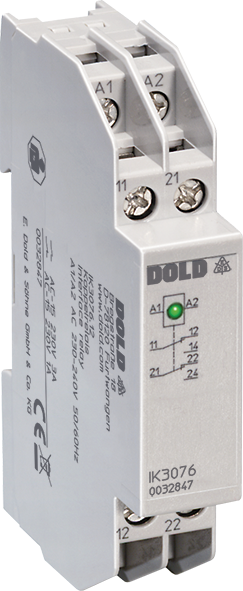

Dold IK3076.12/007 AC/DC48V, Interface relay, sku: 0043276
Dold IK3076.12/007 AC/DC48V, Interface relay, sku: 0043276
Regular price
€66,85
Regular price
Sale price
€66,85
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0043276
The coupling relay IK 3076 and SK 3076 is used for contact multiplication and is suitable as a link between control and power level. The coupling relay is available with different contact combinations and optionally for switching small loads.
| Width: | 17,5 mm |
| Nominal voltage: | AC, DC, AC/DC |
| Initiator triggering: | Yes |
| Suppressor circuit on the coil input: | Yes |
| Thermal current Ith max.: | 10 A |
| Output contacts max.: | 2 C/O contacts |
| Enclosure design: | Distribution board |
| Type: | IK 3076 |
- LED indicator
- As option with 1 or 2 changeover contacts
- As option for switching low loads
- Devices available in 2 enclosure versions:
IK 3076: Depth 59 mm with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
SK 3076: Depth 98 mm with terminals at the top for cabinets with mounting plate and cable duct - DIN rail or screw mounting
- Width 17.5 mm
