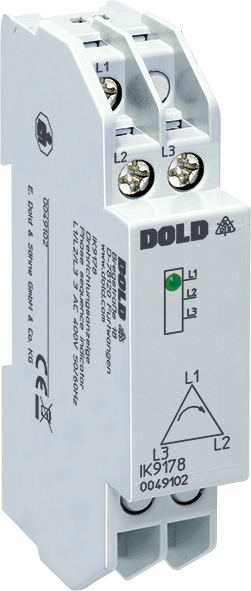

Dold IK9178 3AC50/60HZ 400V, Phase Sequence Indicator, sku: 0049102
Dold IK9178 3AC50/60HZ 400V, Phase Sequence Indicator, sku: 0049102
Regular price
€58,28
Regular price
Sale price
€58,28
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0049102
Indication of phase sequence in 3-phase systems.
| Measuring range max.: | 3 AC 400 V |
| Standard measuring range: | 3 AC 400 V |
| 1- / 3-phase: | 3 |
| Width: | 17,5 mm |
| Enclosure design: | Distribution board |
| Type: | IK 9178 |
- According to IEC/EN 60 255-1
- Indication of phase sequence in 3-phase systems
- Without auxiliary supply
- LED indicator for phase sequence
- Devices available in 2 enclosure versions:
IK 9178: depth 59 mm, with terminals at the bottom for
installation systems and industrial distribution
systems according to DIN 43 880
SK 9178: depth 98 mm, with terminals at the top for cabinets
with mounting plate and cable duct - Width 17.5 mm
