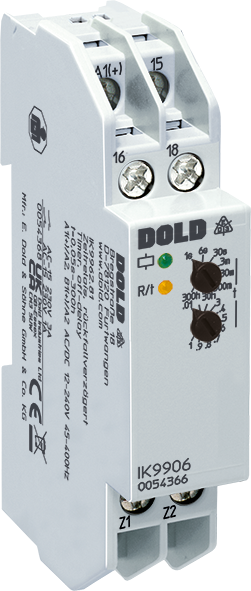

Dold IK9906.81 AC/DC12-240V 0,05S-300H, Timer, On-delay, sku: 0054364
Dold IK9906.81 AC/DC12-240V 0,05S-300H, Timer, On-delay, sku: 0054364
Regular price
€92,86
Regular price
Sale price
€92,86
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:0054364
Time-dependent controllers.
| Width: | 17,5 mm |
| Time function(s): | On-delay |
| Nominal voltage: | AC/DC |
| Time range: | 0,05 s - 300 h |
| Connection facility for remote potentiometer: | Yes |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Distribution board |
| Type: | IK 9906 |
- Power ON-delay relay according to EN 61812-1
- 8 time ranges from 0.05 s to 300 h selectable via rotational switches
- Voltage range AC/DC 12 ... 240 V
- Adjustment aid for quick setting of long time values
- Suitable for 2-wire proximity sensor control
- 1 changeover contact
- As option connection of a remote potentiometer 10 kΩ
- As option with time interruption / time adding input
- LED indicators for operation, contact position and time delay
- Devices available in 2 enclosure versions:
IK 9906: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
SK 9906: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct. - 17.5 mm width
