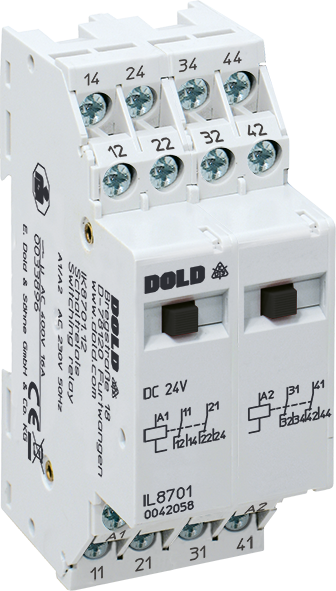

Dold IL8701.14/001 AC50HZ 110V, Input-Output interface relay, sku: 0057833
Dold IL8701.14/001 AC50HZ 110V, Input-Output interface relay, sku: 0057833
Regular price
€128,14
Regular price
Sale price
€128,14
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.01.2026
Couldn't load pickup availability
SKU: SKU:0057833
For switching lamp loadsInput interface relay, e.g. for activation of PLCOutput interface relay, e.g. for PLC-controlled loads
| Width: | 35 mm |
| Nominal voltage: | AC, DC, AC/DC |
| Initiator triggering: | Yes |
| Suppressor circuit on the coil input: | Yes |
| Thermal current Ith max.: | 16 A |
| Output contacts max.: | 3 C/O contacts |
| Enclosure design: | Distribution board |
| Type: | IL 8701 |
- According to EN 60947-5-1
- Pushbutton for manual actuation of the contact
- Operating position display
- High thermal current Ith
- Width: 17.5 or 35 or 52.5 mm
