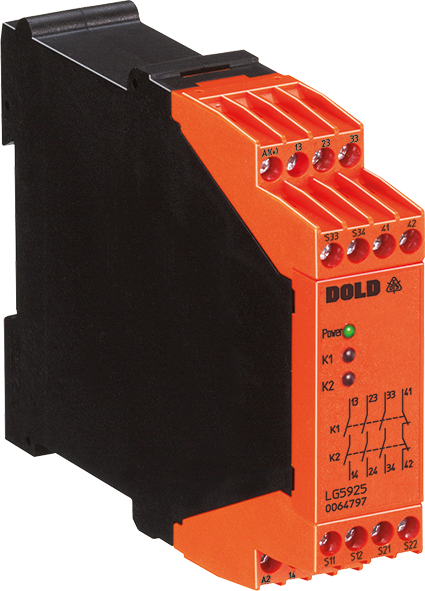

Dold LG5925.03/034 AC/DC24V, Safety module for elevator controls, sku: 0064797

Dold LG5925.03/034 AC/DC24V, Safety module for elevator controls, sku: 0064797

€247,56
€247,56
Sale Sold out
Taxes included.

📦 Ready for dispatch: 07.12.2025

SKU: 0064797

Bridging of the door and locking switches while moving the elevator in the unlocking zone with open doors according to EN81-20/-50 for elevators for people and loads.

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: AC/DC
Thermal current Ith max.: 5 A
1- / 2-channel: 1, 2
Cross fault detection: Yes
Connection: Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals
Output contacts max.: 1 NC contact, 3 NO contacts
Type: LG 5925/034
  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
    - Safety Integrity Level (SIL) 3 to IEC/EN 61508
    - Directive 2014/33/EU for elevators
  • Output: 3 NO contacts, 1 NC contact
  • Single or 2-channel operation
  • Line fault detection on On-button
  • Manual restart or automatic restart, switch S2
  • With or without cross fault monitoring in the loop, switch S1
  • LED indicator for channel 1, 2 and supply voltage
  • Degree of protection IP40; can be mounted in cabinets and installations with lower degree of protection without additional measures (depending on ambient conditions)
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
  • As option with pluggable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width 22.5 mm
