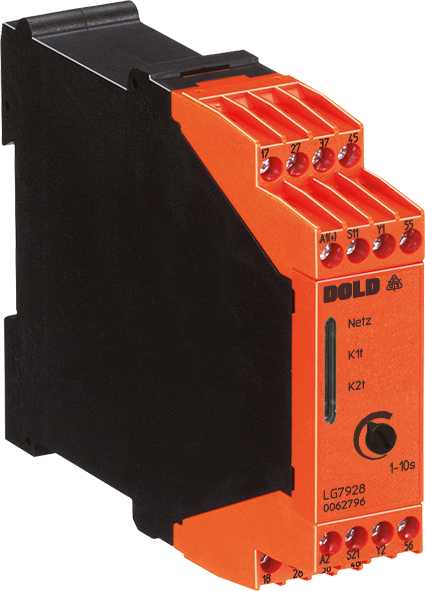

Dold LG7928.97/001/61 AC/DC24V 3S, Delay module, release delayed, sku: 0064270

Dold LG7928.97/001/61 AC/DC24V 3S, Delay module, release delayed, sku: 0064270

€245,90
€245,90
Sale Sold out
Taxes included.

📦 Ready for dispatch: 01.01.2026

SKU: 0064270

The LG 7928 can be used for delayed stopp with status request of the safety relays (Stop category 1 acc. to DIN EN 60204-1) or controlled stopping of plant components.

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 3/d
SIL acc. to IEC/EN 62061: 2
Nominal voltage: AC/DC
Thermal current Ith max.: 5 A
1- / 2-channel: 1
Time delay max.: 600 s
Approvals: UL
Connection: Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals
Output contacts max.: 1 NC contact, 4 NO contacts
Type: LG 7928
  • Can be used in conjunction with a suitable switchgear / control unit in safety applications as follows:
    - Up to PL d and category 3 according to EN ISO 13849-1
    - Up to SIL 2 according to EN 61508 and EN 61511
  • Adjustable time delay
  • As option fixed time delay
  • High long life stability due to digital time base
  • Adjustable with or without cross fault detection
  • Output: 3 NO contacts + 1 NC contact + 1 forcibly guided feedback contact or 4 NO contacts + 1 forcibly guided feedback contact
  • LED indicator for channel 1, 2 and operation voltage
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
  • As option with pluggable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width 22.5 mm
