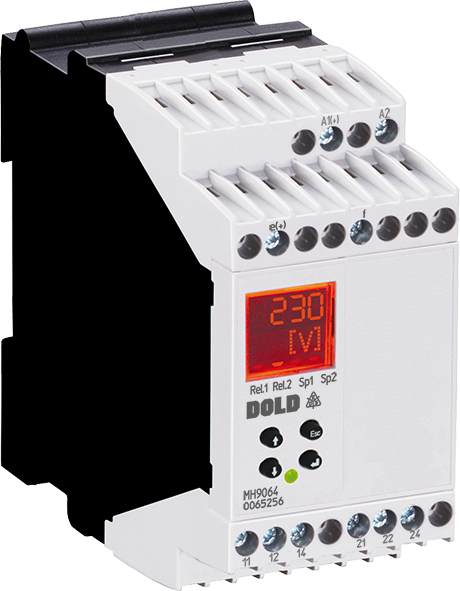

Dold MH9064.12 AC/DC24-600V UH=DC24V, Voltage relay, sku: 0067509

Dold MH9064.12 AC/DC24-600V UH=DC24V, Voltage relay, sku: 0067509

€367,67
€367,67
Sale Sold out
Taxes included.

📦 Ready for dispatch: 01.01.2026

SKU: 0067509

The voltage relays MK 9064N and MH 9064 of the varimeter family provide a solution for an optimised monitoring of the function of an electrical device. Single-phase AC and also DC can be measured, undervoltage, overvoltage and voltage window are monitored and the measured value is displayed on the front.

Width: 45 mm
Operate delay: Yes
1- / 3-phase: 1
Nominal voltage max.: AC/DC 600 V
Auxiliary voltage: AC, DC, AC/DC
Output contacts: 2 x 1 C/O contacts
Enclosure design: Switch cabinet
Type: MH 9064
  • According to IEC/EN 60 255-1
  • AC/DC voltage measuring (single-phase)
  • Start up delay, on delay
  • Manual reset
  • LCD for indication of the measuring values
  • Relay output
    MK 9064N: 1 changeover contact
    MH 9064: 2 x 1 changeover contacts
  • Relay function selectable (energized/de-energized on trip)
  • As option with plugable terminal blocks for easy exchange of devices
    - with screw terminals
    - or with cage clamp terminals
  • Width MK 9064N: 22.5 mm
  • Width MH 9064: 45.0 mm
