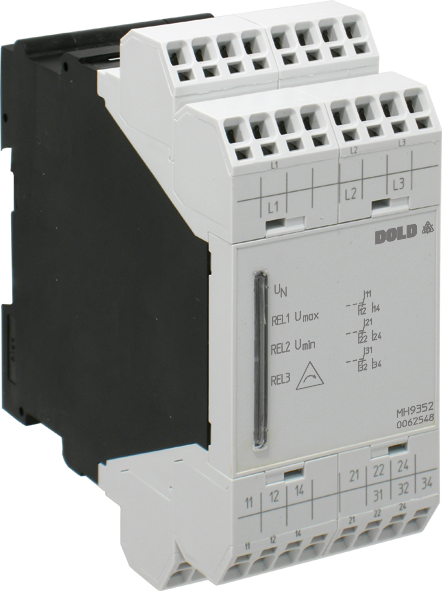

Dold MH9352.13PC/001 3AC85-550V >U=AC85V, Phase monitor, sku: 0062548

The Phase monitor MH 9352/001 of the VARIMETER series monitors over and undervoltage, voltage failure as well as wrong phase sequence at three-phase networks. The measurement is very simple and can be carried out without much wiring effort, as no separate auxiliary voltage is required. Early detection of impending failtures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.

• Acc. to IEC/EN 60255-1
• 3 phases mains monitoring on
  - Overvoltage
  - Undervoltage
  - Phase sequence and voltage failure
• 3 separate output relais with 1 changeover contact each
• Without N connection
• Closed circuit operation
• As option with different connection blocks
  - With fixed screw terminals
  - With plug-in screw terminals
  - With plug-in cage-clamp terminals
• Width: 45 mm
