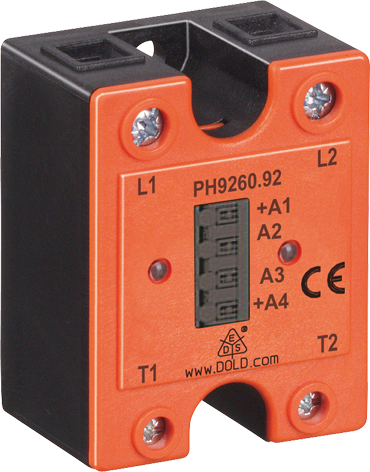

Dold PH9260.92 AC48-480V 2xAC48A, Solid-state relay / contactor, 2-poles, sku: 0064252
Dold PH9260.92 AC48-480V 2xAC48A, Solid-state relay / contactor, 2-poles, sku: 0064252
Regular price
€106,45
Regular price
Sale price
€106,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:0064252
| Widths: | 45 mm |
| Number of poles: | 2-pole |
| Load voltage up to: | AC 480 V |
| Load current up to: | 2 x 48 A |
| On/Off Input Control: | DC |
| Type: | PH 9260.92 |
- AC solid-state relay / -contactor
- According to IEC/EN 60947-4-3
- As option load current up to 2 x 32 A or 2 x 48 A
- As option with hight I²t up to 6600 A²s
- Load voltages up to AC 480 V
- 2 anti-parallel thyristors for each pole
- DCB technology (direct bonding method) for excellent heat transmission propertie
- Touch protection IP20
- Box terminals for load connections
- LED status indicator for both poles
- Peak reverse voltage up to ± 1200 V
- Insulation voltage 4000 V
- Width 45 mm
