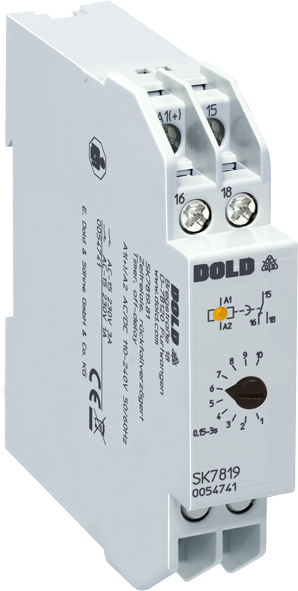

Dold SK7819.81 AC/DC110-240V 15-300S, Timer, Off-delay, sku: 0059638

Dold SK7819.81 AC/DC110-240V 15-300S, Timer, Off-delay, sku: 0059638

€122,68
€122,68
Sale Sold out
Taxes included.

📦 Ready for dispatch: 01.01.2026

SKU: 0059638

Time-dependent controllers

Width: 17,5 mm
Time function(s): Off-delay, without control signal
Nominal voltage: AC/DC
Time range: 0,05 s - 300 s
Output contacts: 1 C/O contact
Enclosure design: Switch cabinet
Type: SK 7819
  • Power OFF-delay relay according to EN 61812-1
  • No-voltage safe
  • 1 changeover contact
  • Delay of 0.05 ... 300 s
  • Wide voltage range
  • Repeat accuracy ≤ 1 %
  • LED indicator for operation
  • Devices available in 3 enclosure versions:
    IK 7819: Depth 58 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
    SK 7819, BC 7938N: Depth 98 mm, with terminals at the top for cabinets with mouning plate and cable duct
  • IK/SK 7819: width 17.5 mm
    BC 7938N: width 22.5 mm
