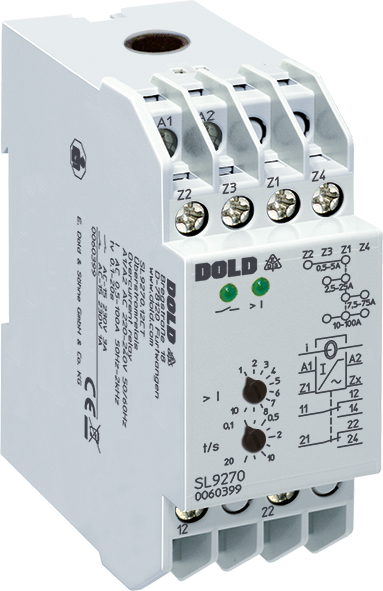

Dold SL9270.12CT AC220-240V 0,5-100A, Overcurrent Relay, sku: 0060399

Dold SL9270.12CT AC220-240V 0,5-100A, Overcurrent Relay, sku: 0060399

€274,43
€274,43
Sale Sold out
Taxes included.

📦 Ready for dispatch: 01.01.2026

SKU: 0060399

Overcurrent detection in single phase or 3-phase voltage systems.

Width: 35 mm
1- / 3-phase: 1
Measuring range: AC 0,5 - 100 A
Auxiliary voltage: AC, AC/DC
Operate delay: Yes
Output contacts: 2 C/O contacts
Enclosure design: Switch cabinet
Type: SL 9270CT
  • According to IEC/EN 60 255-1
  • IP 9270, SP 9270CT: 3-phase
    IK 9270, SK 9270, IL 9270, SL 9270CT: single phase
  • Measuring ranges from 0.1 ... 100 A
  • Settable response value
  • Fixed hysteresis
  • Settable time delay
  • de-energized on trip
  • energized on trip
  • LED indicators
  • With auxiliary voltage
  • Auxiliary supply and measuring input galvanic separated
  • Devices available in 2 enclosure versions:
    - I-model, e.g. IK _ _ _ _, depth 61 mm with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
    - S-model, e.g. SK _ _ _ _, depth 100 mm with terminals at the top for cabinets with mounting plate and cable duct
  • Width IK 9270, SK 9270: 17.5 mm
    IL 9270, SL 9270CT: 35 mm
    IP 9270, SP 9270CT: 70 mm
