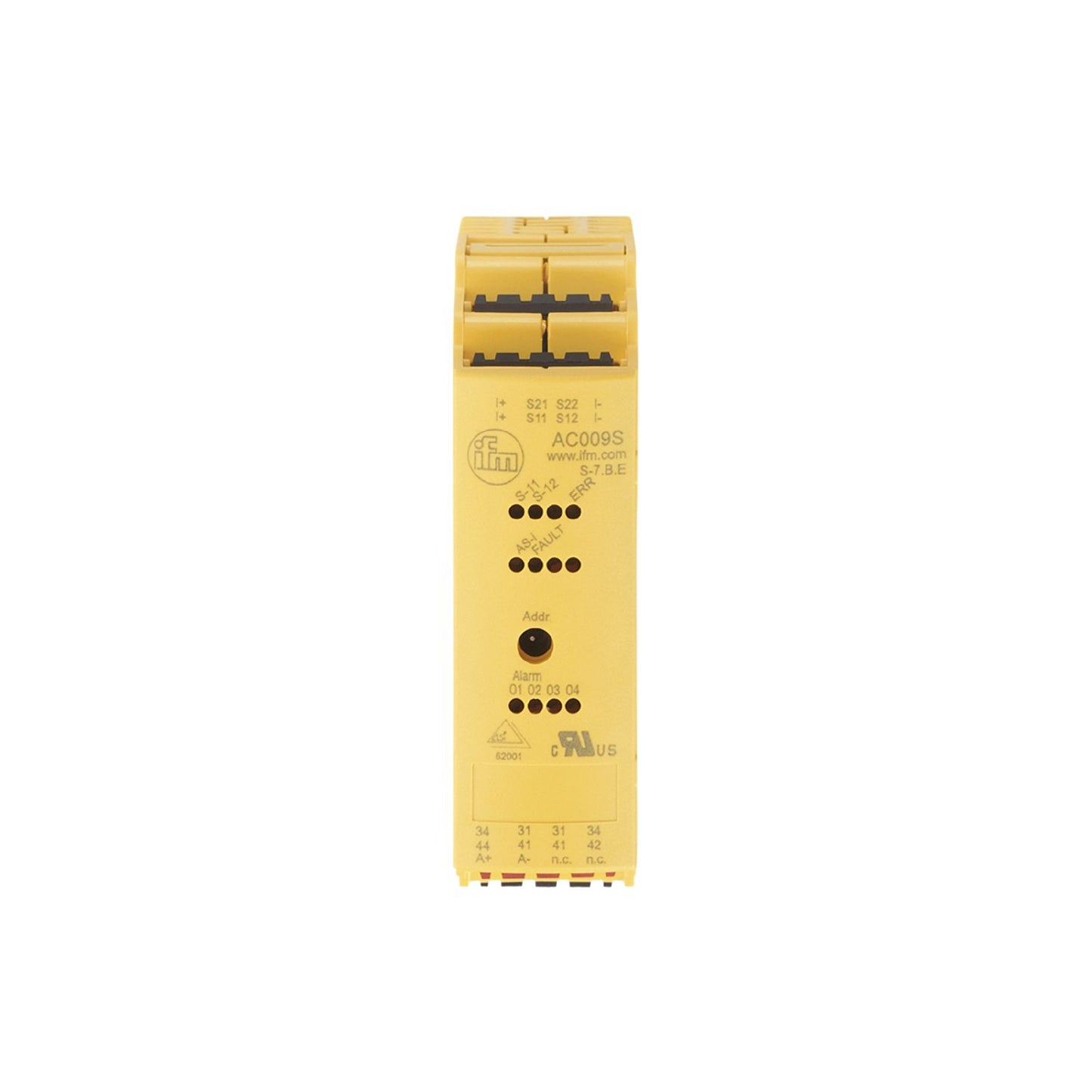

For the connection of mechanical safety switches to AS-Interface. With two safe inputs and cross-monitoring. Clearly visible powerful LEDs for displaying operation, switching status and error. Simple and fast wiring by means of screw terminals. Particularly space-saving design
Application
Installation in control cabinets
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Max. current load total [A]
6;(ohmic resistance)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of relay outputs: 2
Inputs
Number of digital inputs
2;(2 x Sicherheitseingang)
Input circuit of digital inputs
PNP;(DC)
Sensor supply of the inputs
AS-i
Max. total current rating of inputs [mA]
100
Input current High [mA]
10
Short-circuit protection digital inputs
yes
Outputs
Voltage range DC [V]
24;(The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 24 V DC)
Voltage range AC [V]
10...240;(The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 240 V AC)
Max. current load per output [mA]
6000;(ohmic resistance)
Number of relay outputs
2
Short-circuit proof
no
Electrically separated
yes
Operating conditions
Ambient temperature [°C]
-25...50
Storage temperature [°C]
< 80
Max. relative air humidity [%]
80;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 20
Pollution degree
2
Tests / approvals
EMC
EN 61000-6-2
EN 62026-2
EN 61326-3-1
EN 61000-6-4
Standard
EN 61010-1; EN 13849-1; EN 63000
Safety classification
Complies with the requirements
ISO 13849-1 category 4, PL e
IEC 61508 SIL 3
Mission time TM [h]
175200
Mission time TM (additional indication)
20 years
PFH [1/h]
4E-09
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i profile
S-7.B.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
B.E
AS-i certificate
62001
Assignment of the data bits
data bit
D0
D1
D2
D3
input
SI-1
SI-1
SI-2
SI-2
Output
O-1
O-2
O-3
O-4
Weight [g]
216.5
Type of mounting
mounting on DIN rail
Materials
PC-GF20
Displays / operating elements
Display
switching status
LED, yellow SI1...SI2, O3...O4
operation
LED, green AS-i
errors
LED, red ERR O1...O2
Pack quantity
1 pcs.
Electrical connection
Connection
pin headers: 4 x ; Spacing: 5.0 mm
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC009S-03 — 29.02.2024 —
