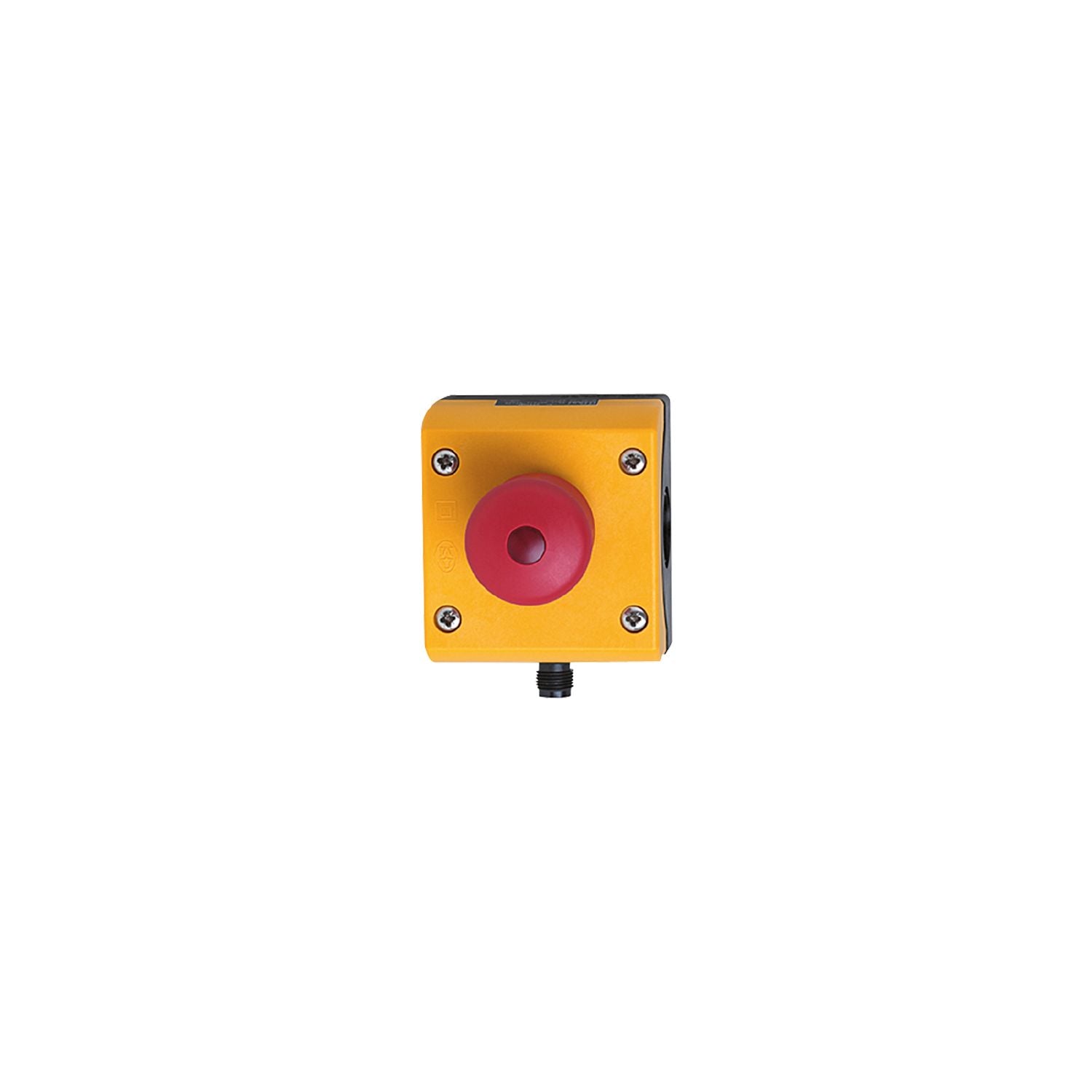

IFM AC010S - illuminated E-STOP with integrated AS-i connection E-stop illuminated IP67

Application	fool-proof E-STOP to EN ISO 13850

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	50
Integrated watchdog	yes

Inputs

Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20
Input current Low [mA]	< 4
Digital inputs protected against short circuits	yes

Outputs

Electrical design	AS-i
Max. current load per output [mA]	10
Short-circuit proof	no
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Safety classification

Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3
Mission time TM [h]	87600

AS-i classification

AS-i version	2.1
Extended addressing mode	no
AS-i master profile	M3; M4
AS-i profile	S-7.B.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	B.E
AS-i certificate	74601

Weight [g]	330.6
Dimensions [mm]	105 x 72 x 80
Materials	PC-GF20

Displays / operating elements

Display	function LED, red

Electrical connection

Module connection	M12

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable, IP 67:
	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — AC010S — 24.01.2024 —
