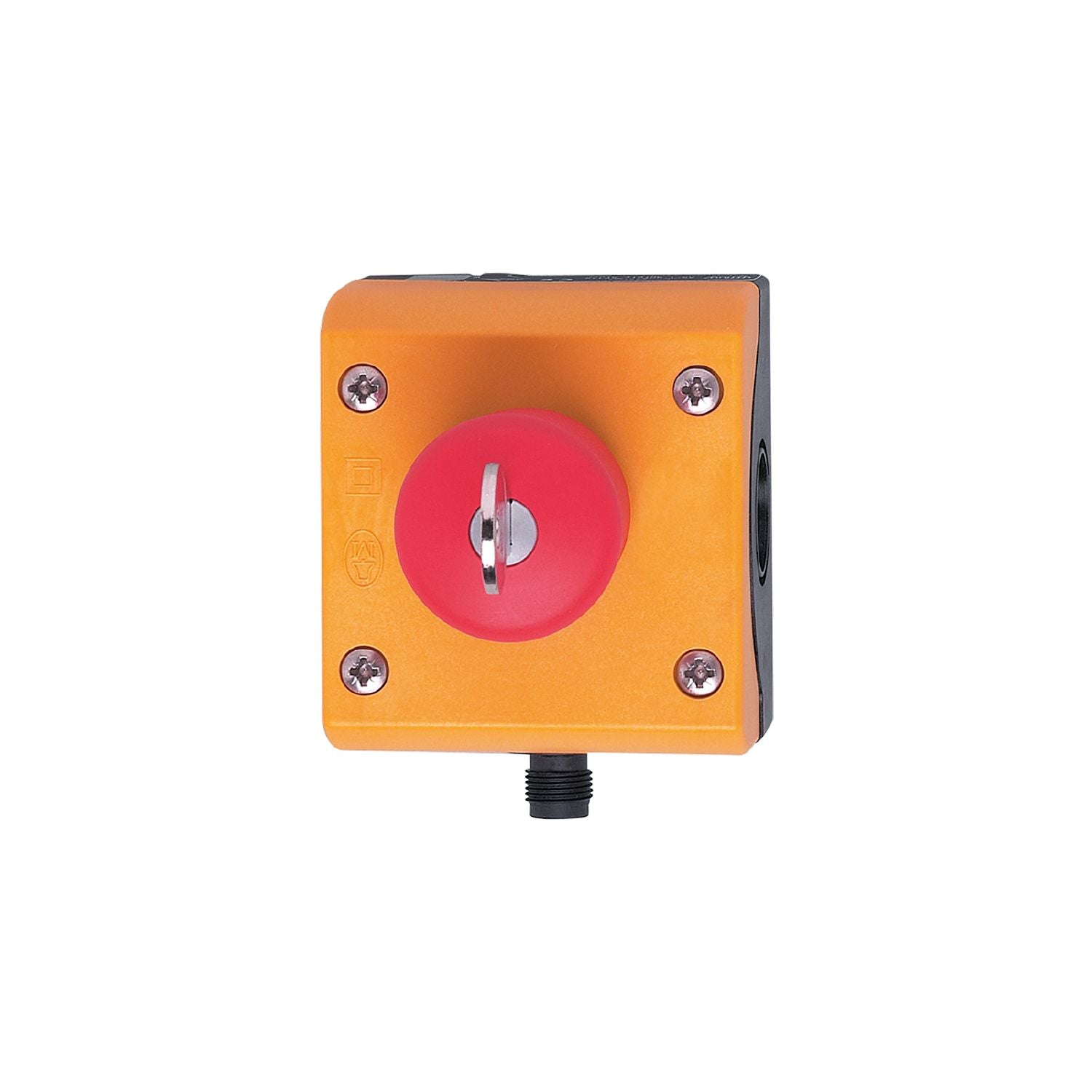

IFM AC011S - key-release E-STOP with integrated AS-i connection E-stop key switch IP67

Application	fool-proof E-STOP to EN ISO 13850

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 50

Inputs

Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20
Input current Low [mA]	< 4
Digital inputs protected against short circuits	yes

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Safety classification

Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3
Mission time TM [h]	87600

AS-i classification

AS-i version	2.1
Extended addressing mode	no
AS-i master profile	M3; M4
AS-i profile	S-7.B.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	B.E
AS-i certificate	74601

Weight [g]	343.5
Dimensions [mm]	105 x 72 x 93.5
Materials	PC-GF20

Electrical connection

Module connection	M12

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable, IP 67:
	Connector:M12; coding: A
