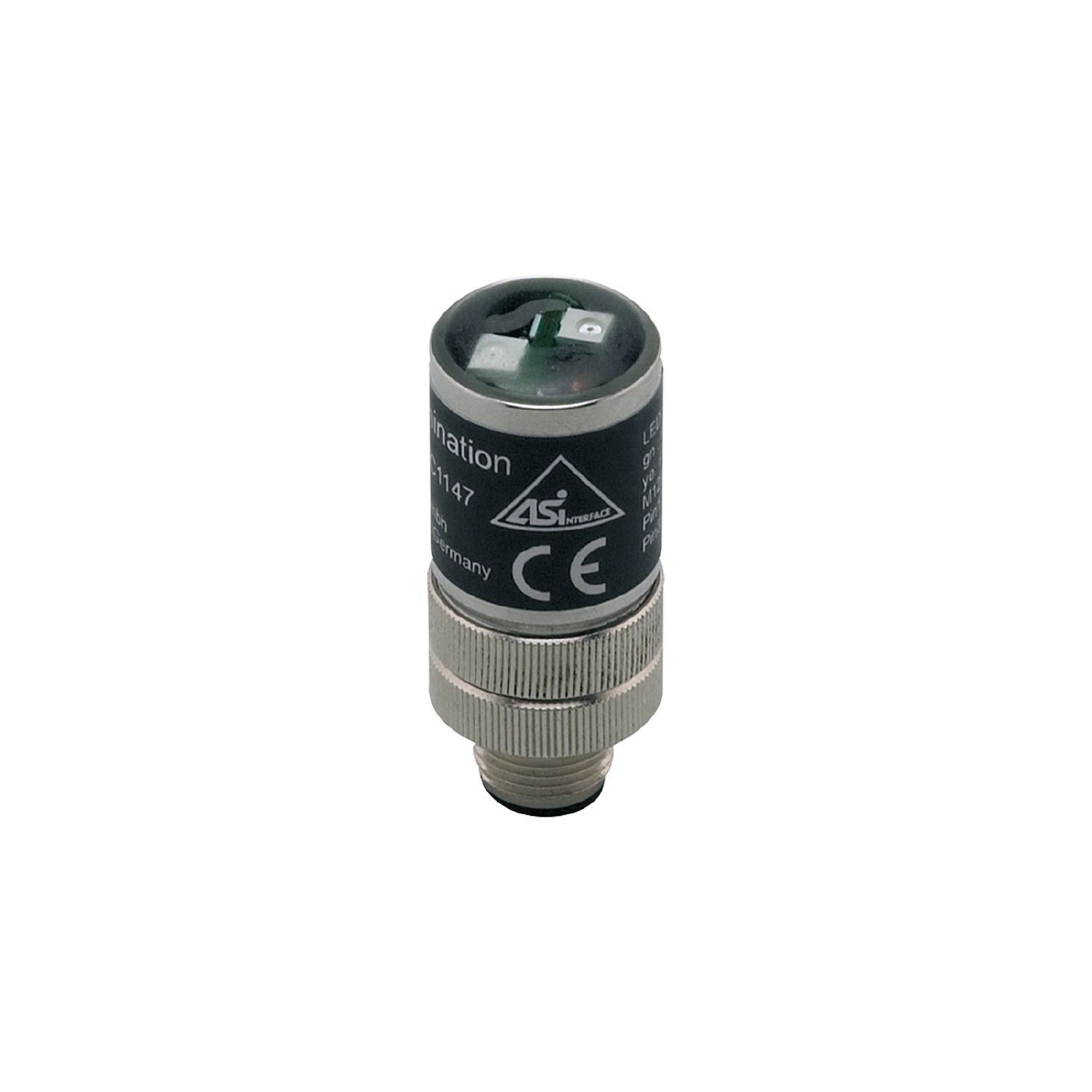

IFM AC1147 - AS-Interface passive bus termination AS-I BUS TERMINATION

For extending the cable without any additional repeater.
Can be used in any network topology.
Quick and easy to mount using flat cable insulation displacement connector.
For improving the signal quality.
With LED display for checking the supply voltage

Application	improvement of the signal quality

Nominal voltage DC [V]	26.5...31.6
Max. current consumption from AS-i [mA]	10
Reverse polarity protection	yes
Undervoltage monitoring	yes

Outputs

Electrical design	AS-i
Electrically separated	no

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-25...70
Storage humidity [%]	> 90;(non condensing)
Protection	IP 67

Tests / approvals

MTTF [years]	550

Weight [g]	45
Dimensions [mm]	Ø 20 / L = 46

Displays / operating elements

Display	1 x LED, yellow Voltage AS-i > 18,5 V 1 x LED, green Voltage AS-i > 26 V

Remarks	no addressing required
Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1147-00 — 30.08.2012 —
