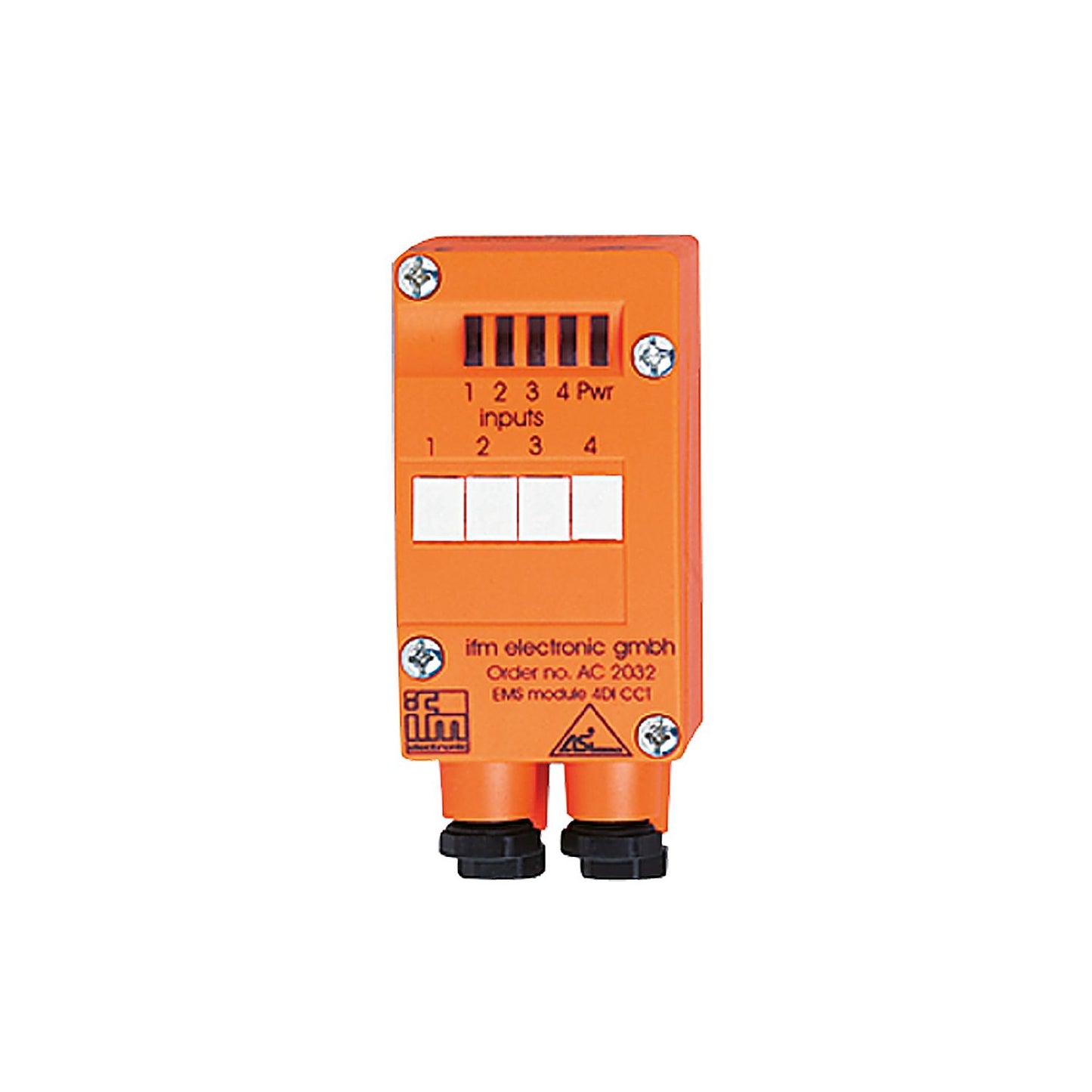

IFM AC2032 - AS-Interface universal module EMS/Module/4DI/CCT

Easy to mount and wire.
For the connection of sensors and actuators with cable entry.
Device connection with cage clamps.
Clearly visible powerful LEDs for displaying operation, switching status and error

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	200

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20...30
Max. total current rating of inputs [mA]	160
Input current High [mA]	> 5
Input current Low [mA]	< 3
Switching level high [V]	> 10
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 50295

AS-i classification

AS-i master profile	M2; M3; M4
AS-i profile	S-0.0.F
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	0.F
Assignment of the data bits	data bit D0 D1 D2 D3 assignment I-1 I-2 I-3 I-4

Weight [g]	182
Type of mounting	AS-i interface to FC and SC lower parts
Materials	PA 6-GF30; stainless steel (1.4305 / 303)

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Electrical connection

Module connection	Flat cables

Pack quantity	1 pcs.

Electrical connection

	cage clamps:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2032-01 — 24.01.2024 —
