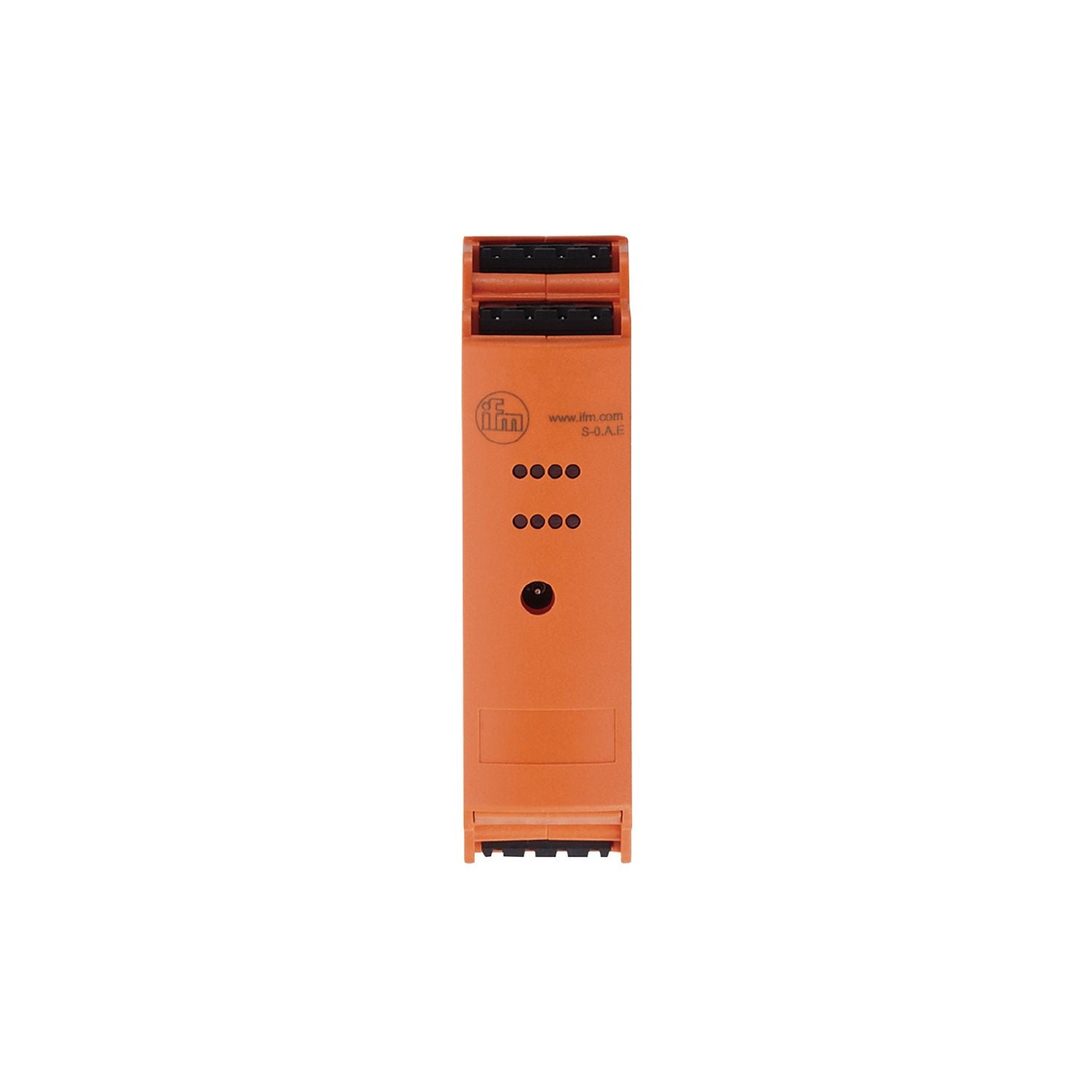

IFM AC2232 - AS-Interface control cabinet module SmartL25 4 DI C

Application	Installation in control cabinets

Operating voltage [V]	18...31.6 DC
Max. current consumption from AS-i [mA]	250

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Power supply [V]	18...30;(DC)
Max. total current rating of inputs [mA]	200
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...75
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 20
Protection rating terminals	IP 20
Pollution degree	2

Tests / approvals

EMC	EN 62026-2 EN 61000-6-2 EN 61000-6-3

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-0.A.E
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.E
AS-i certificate	124402
Assignment of the data bits	data bit D0 D1 D2 D3 input I-1 I-2 I-3 I-4

Weight [g]	101.2
Type of mounting	mounting on DIN rail
Materials	plastics; PC-GF20

Displays / operating elements

Display	switching status LED, yellow I1...I4 operation LED, green AS-i errors LED, red

Accessories

Accessories (optional)	connectors

Remarks	Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable.
Pack quantity	1 pcs.

Electrical connection

Connection	pin headers: 4 x ; Spacing: 5.0 mm
