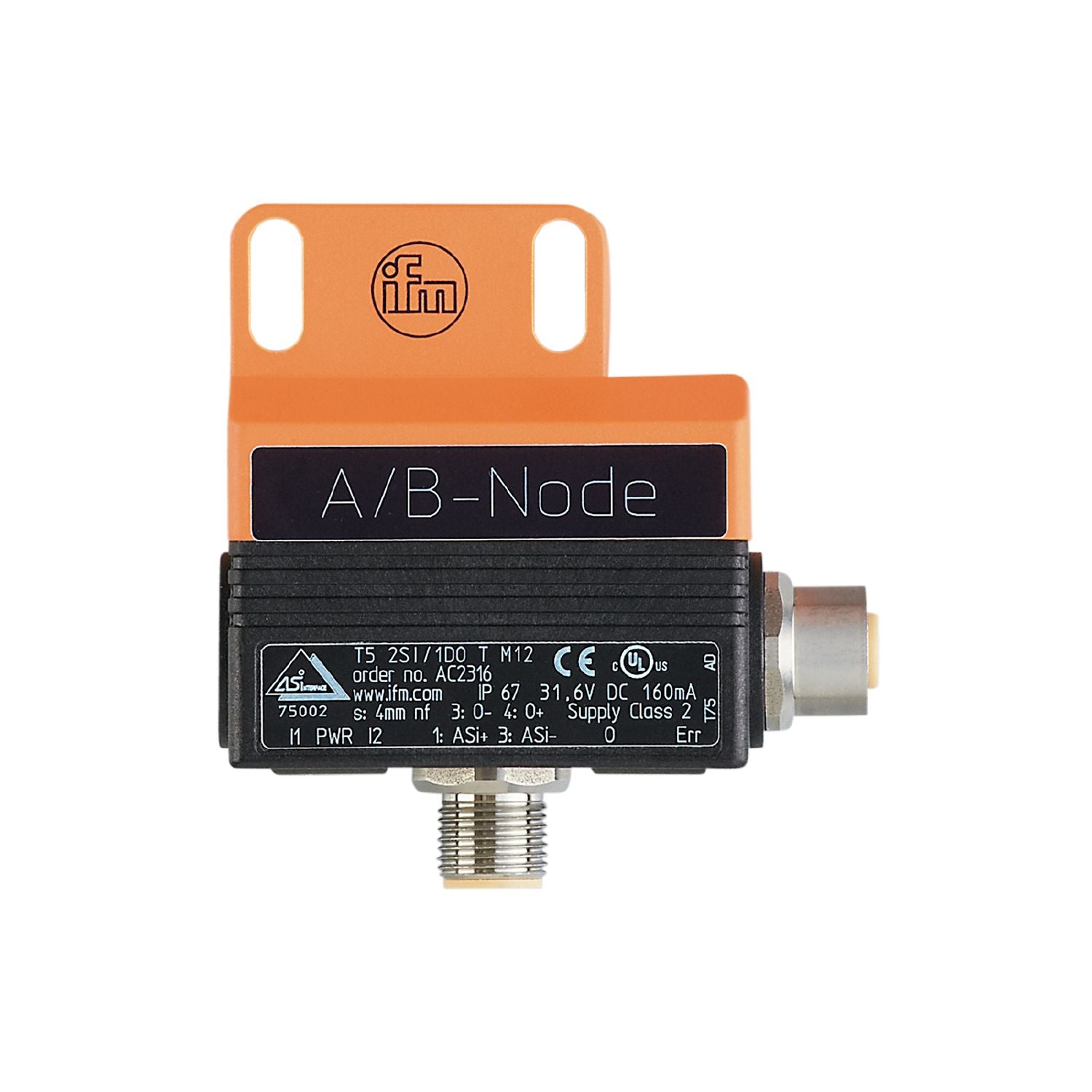

IFM AC2316 - AS-Interface dual sensor for pneumatic valve actuators DUAL SENSOR T5 2SI 1DO T M12

For monitoring valve positions.
For reliable position feedback on valve actuators.
With triggering and fault monitoring of the solenoid valve.
Non-contact and self-cleaning system.
Quick and secure mounting with only three screws

Electrical design	AS-i
Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Operating voltage [V]	26.5...31.6 DC;("supply class 2" to cULus)
Current consumption [mA]	< 160

Outputs

Electrical design	AS-i
Permanent current rating of switching output DC [mA]	100

Detection zone

Sensing range [mm]	4

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC	EN 50295 EN 61000-6-2
MTTF [years]	310

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E
AS-i certificate	75002

Weight [g]	179
Mounting	non-flush mountable
Dimensions [mm]	55 x 60 x 35
Materials	PBT

Displays / operating elements

Display	switching status 2 x LED, yellow

Accessories

Items supplied	Reinforcement bracket socket head screws: 2 x M5 x 35 washers: 2

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2316-01 — 13.04.2023 —
