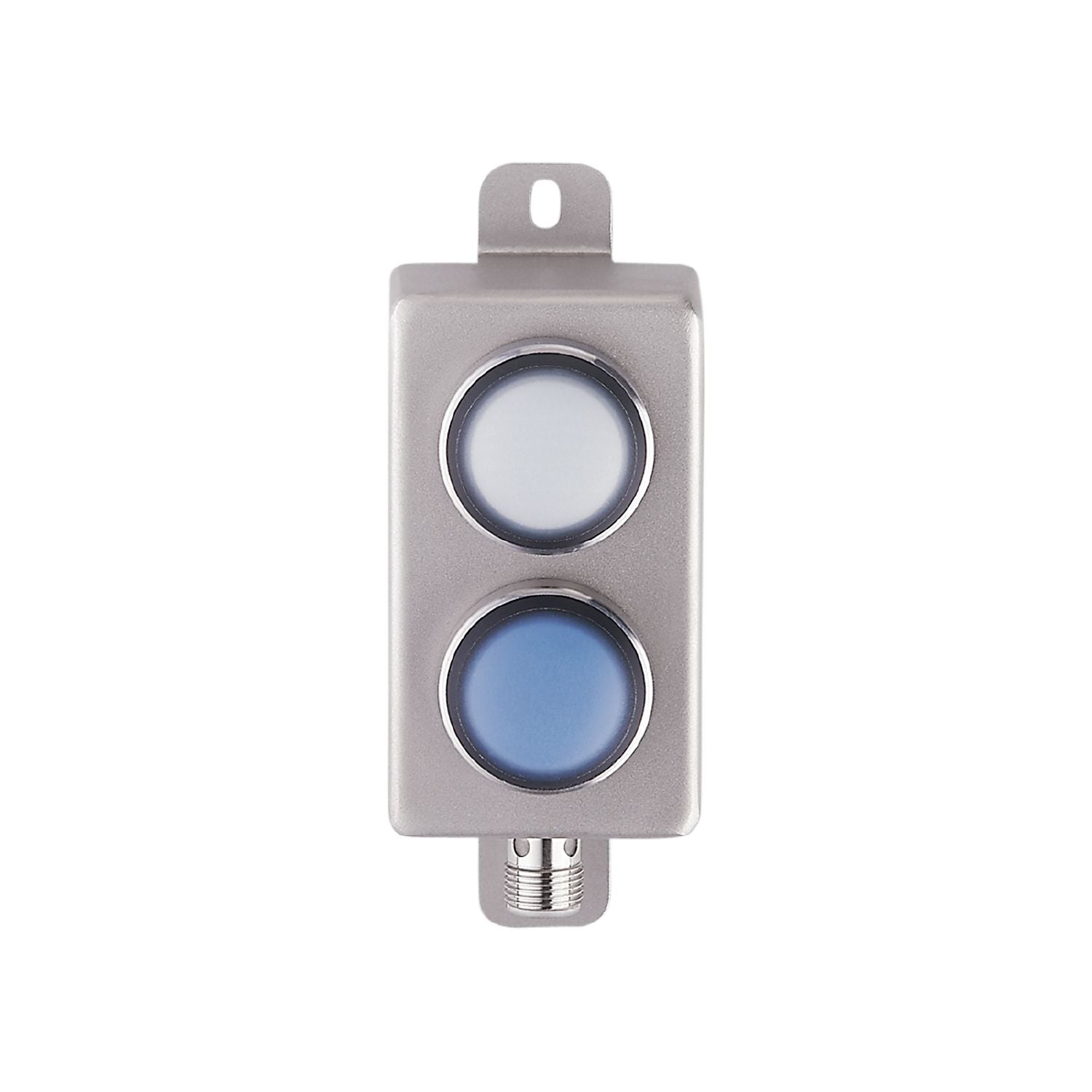

IFM AC2380 - AS-Interface illuminated pushbutton module AS-i Module 2BI 2LO WT/BL IP69K

2 pushbuttons and 2 LED outputs.
pushbuttons with tactile pressure point as protection against accidental triggering.
robust stainless steel housing with high protection rating.
Quick and easy mounting.
the module is directly supplied from AS-Interface

Application	field installation; hygienic and wet areas in the food industry

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	80

Inputs

Sensor supply of the inputs	AS-i

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-40...80
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-6-2 EN 62026-2

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-B.A.E
AS-i I/O configuration [hex]	B
AS-i ID code [hex]	A.E
AS-i certificate	135301
Assignment of the data bits	data bit D0 D1 D2 D3 LED 1 blue DO-0 - - - LED 2 white - DO-1 - - pushbutton 1 - - DI-2 (NO) - pushbutton 2 - - - DI-3 (NO)

Weight [g]	275.6
Type of mounting	screw mounting
Dimensions [mm]	118 x 50 x 47
Materials	stainless steel

Displays / operating elements

Display	operation LED, green errors LED, red
Operating elements	2 freely programmable backlit function keys

Electrical connection

Module connection	M12

Remarks	The pushbutton modules (RAFI type RAFIX22) offer protection against accidental contact.
Pack quantity	1 pcs.
