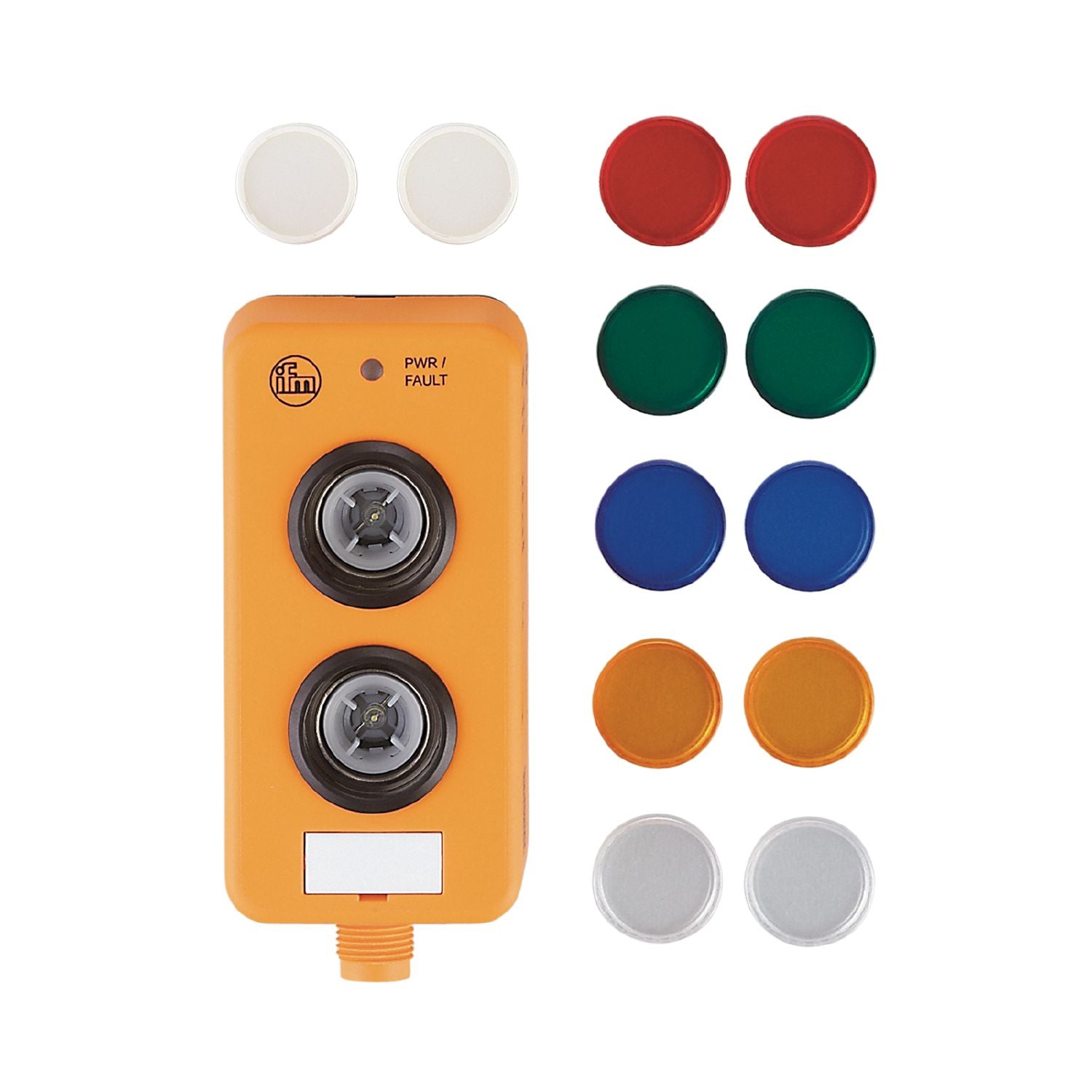

IFM AC2386 - AS-Interface illuminated pushbutton module AS-i Module 2BI 2LO WT/WT

Use as start/stop button or as acknowledgement button on machines.
Pushbuttons with tactile press point as protection against accidental contact.
Clearly visible LEDs as optical feedback for actuation.
Active triggering via AS-interface.
High protection rating for the requirements of harsh industrial environments

Design	Colour inserts changeable
Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	55

Inputs

Sensor supply of the inputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

EMC	EN 61000-6-2 EN 62026-2

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E
AS-i certificate	133801
Assignment of the data bits	data bit D0 D1 D2 D3 LED 1 DO-0 - - - LED 2 - DO-1 - - pushbutton 1 DI-0 - - - pushbutton 2 - DI-1 - -

Weight [g]	140
Type of mounting	mounting on DIN rail
Dimensions [mm]	89.6 x 46 x 45
Materials	PA

Displays / operating elements

Display	operation LED, green errors LED, red
Operating elements	2 freely programmable backlit function keys

Electrical connection

Module connection	M12

Accessories

Items supplied	cover support: 2 colour inserts: 2, red 2, green 2, yellow 2, blue 2, white

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2386-00 — 24.01.2024 —
