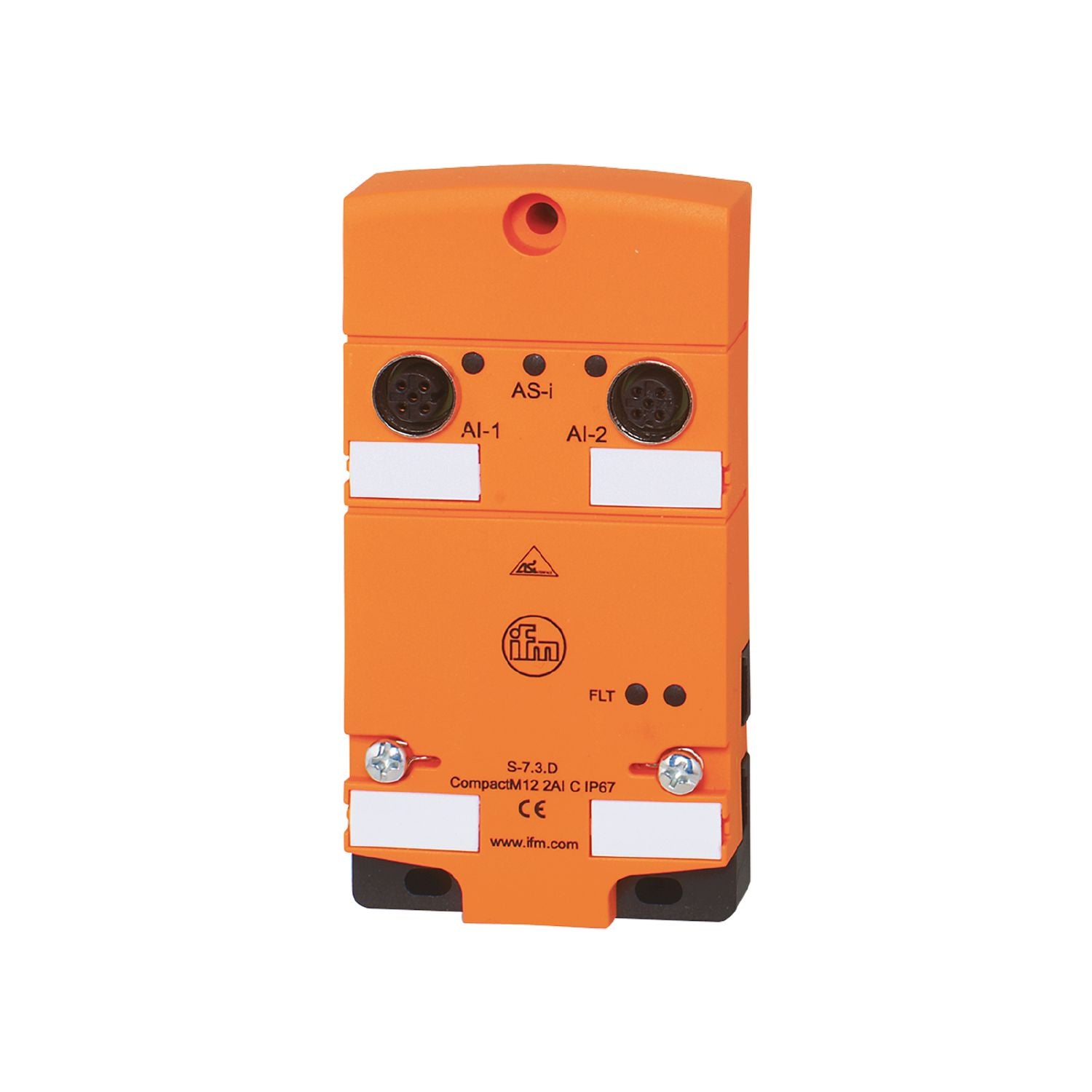

Easy to mount and wire. High shock and vibration resistance thanks to full potting. Clearly visible powerful LEDs for displaying operation, function and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 2
Inputs
Max. total current rating of inputs [mA]
200
Number of analogue inputs
2;(Anschluss von 2- und 3-Draht-Sensoren)
Analogue input (current) [mA]
4...20
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-25...80
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67;(when flat cables are used E7400x / E7401x)
Tests / approvals
EMC
EN 61000-6-2
EN 62026-2
EN 50581
MTTF [years]
167
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
IR addressing possible
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.D
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.D
AS-i certificate
99101
Weight [g]
275.5
Type of mounting
AS-i flat cables directly connectable
Materials
PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws in the lower part: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
LED, green Voltage AS-i
errors
LED, red
function
LED, yellow channels AI1, AI2
Electrical connection
Module connection
Flat cables
Accessories
Accessories (optional)
Protective cap: M12, E73004
Stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.
There is an electrical connection between the sensor and AS-i.
The module is exclusively supplied via the yellow AS-i cable.
Pack quantity
1 pcs.
Electrical connection
Connector:M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2402-00 — 24.01.2024 —
