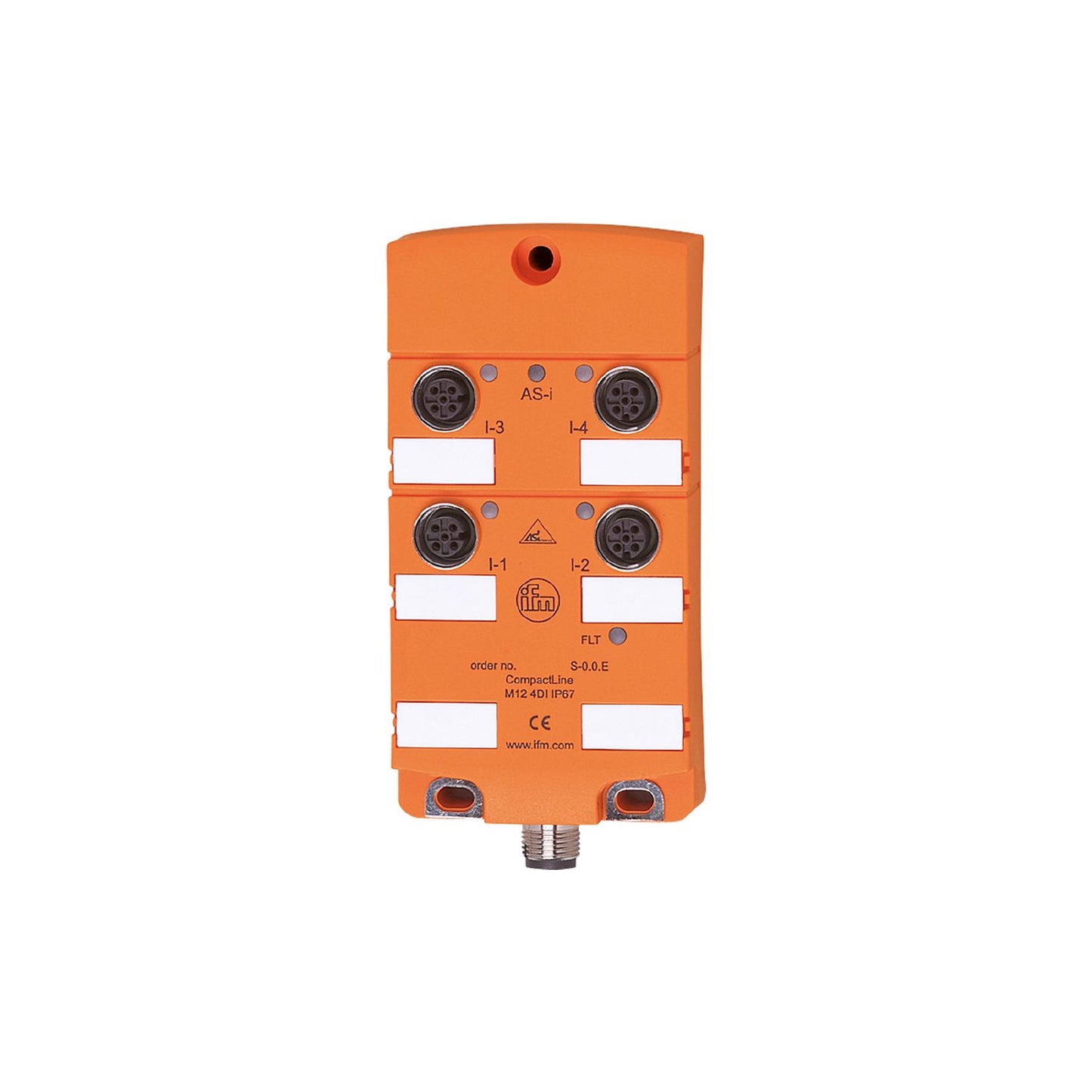

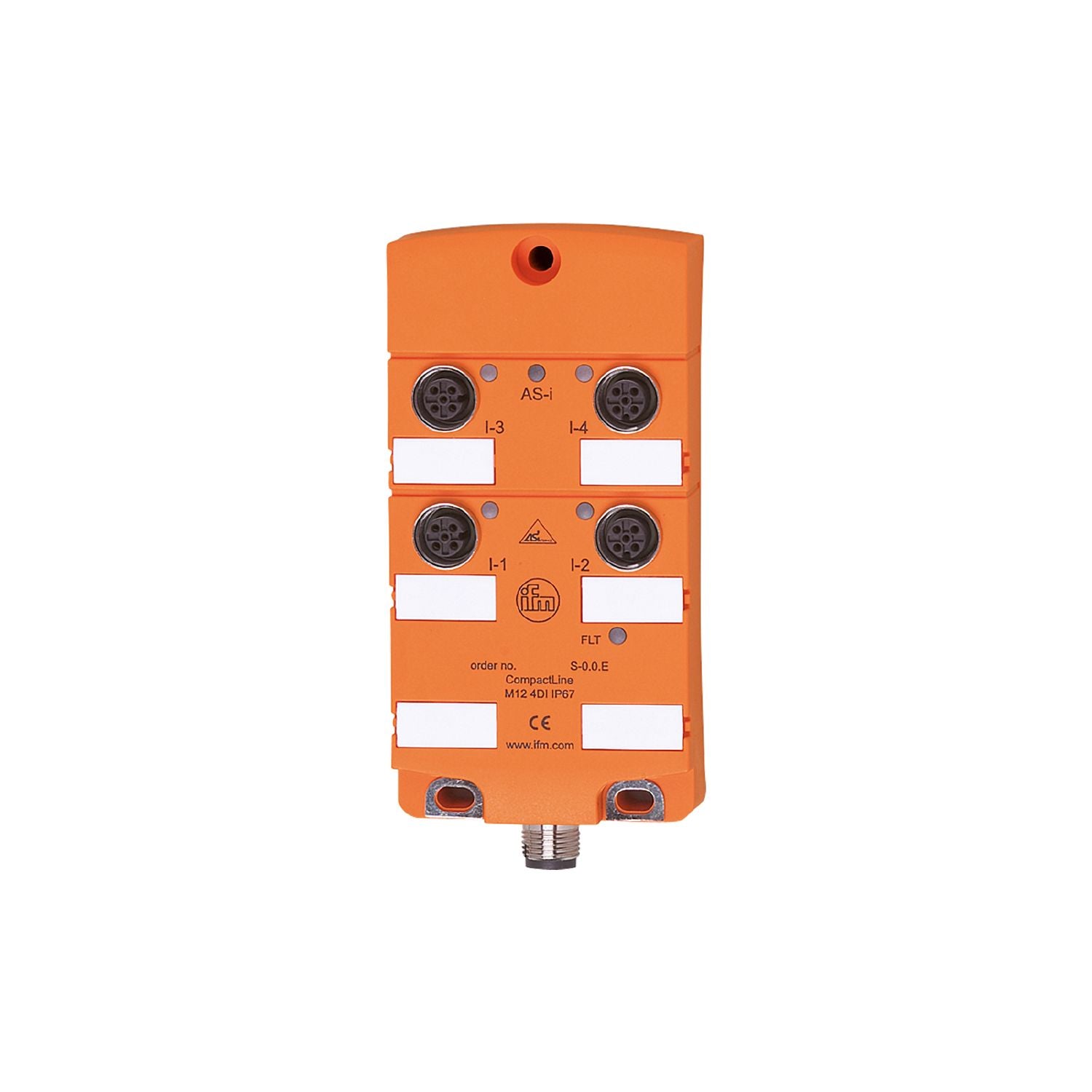

Easy to mount and wire. High shock and vibration resistance thanks to full potting. Clearly visible powerful LEDs for displaying operation, function and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
20...30;(DC)
Max. total current rating of inputs [mA]
200
Input current limitation [mA]
15
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-25...80
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67;(when flat cables are used E7400x / E7401x)
Tests / approvals
EMC
EN 61000-6-2
EN 62026-2
EN 50581
MTTF [years]
382
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
IR addressing possible
Extended addressing mode
no
AS-i master profile
M2; M3; M4
AS-i profile
S-0.0.E
AS-i I/O configuration [hex]
0
AS-i ID code [hex]
0.E
AS-i certificate
40501
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1
I-2
I-3
I-4
pin
2+4
2+4
2+4
2+4
Weight [g]
301.5
Housing
AS-i voltage via M12 connector
Materials
PA; socket: brass nickel-plated; O-ring: FKM
Displays / operating elements
Display
switching status
LED, yellow I1...I4
operation
LED, green AS-i
errors
LED, red
Electrical connection
Module connection
M12
Accessories
Accessories (optional)
Stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection - AS-i
Connector:M12; coding: A
Electrical connection - Process connection
Connector:M12; coding: A
