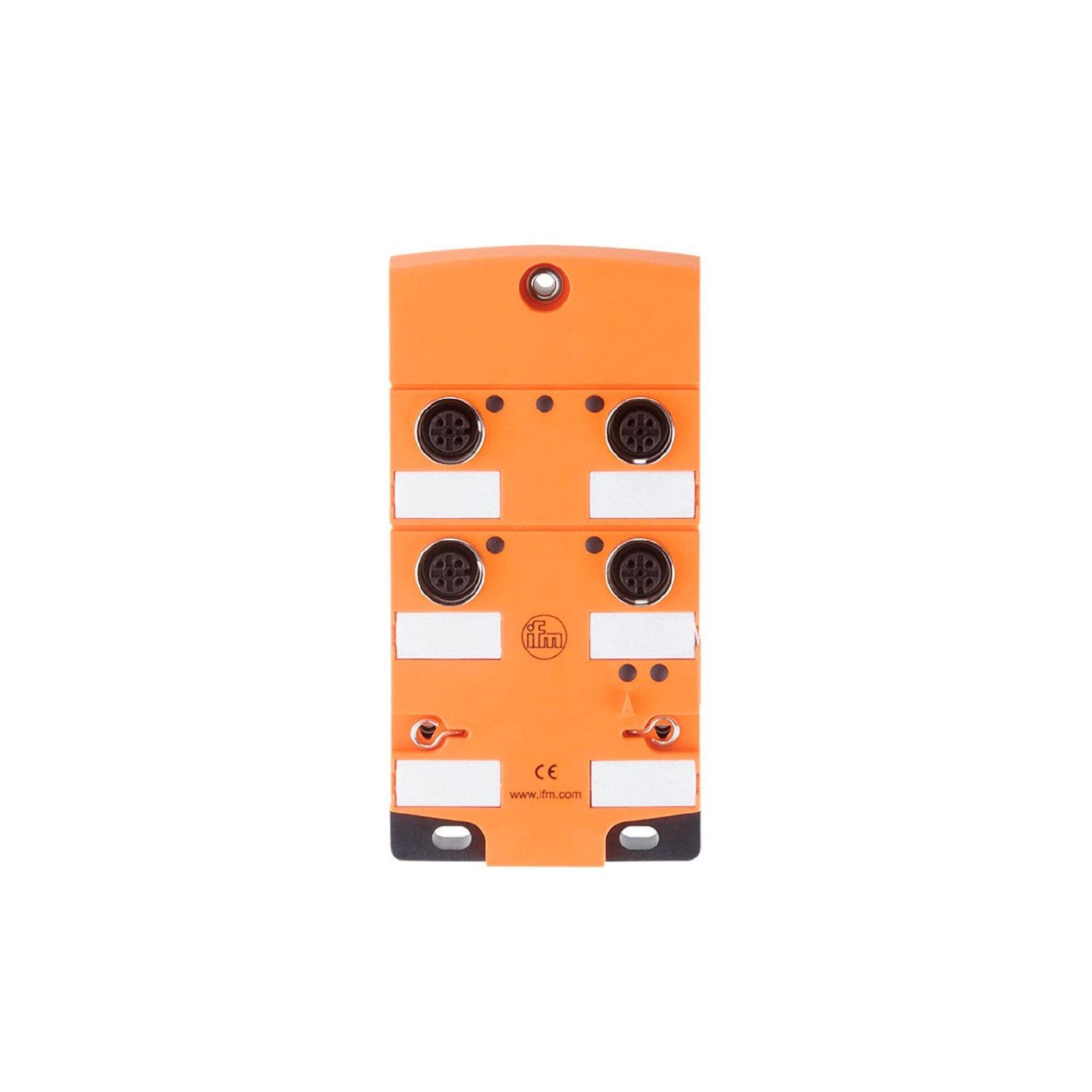

IFM AC2474 - AS-Interface CompactLine module CompactLine M12 4DI

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	250

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Power supply [V]	20...30;(DC)
Max. total current rating of inputs [mA]	200
Input current limitation [mA]	15
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 67;(when flat cables are used E7400x / E7401x)

Tests / approvals

EMC	EN 61000-6-2 EN 62026-2 EN 50581
MTTF [years]	382
UL approval	power supply Class 2

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	IR addressing possible
Extended addressing mode	no
AS-i master profile	M2; M3; M4
AS-i profile	S-0.0.E
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	0.E
AS-i certificate	40501
Assignment of the data bits	data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1 I-2 I-3 I-4 pin 2+4 2+4 2+4 2+4

Weight [g]	299
Type of mounting	AS-i flat cables directly connectable
Materials	PA; socket: brass nickel-plated; threaded inserts in the lower part: brass nickel-plated; O-ring: FKM; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display	switching status LED, yellow I1...I4 operation LED, green AS-i errors LED, red

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	stainless steel sleeve for installation in case of high mechanical stress , E70402

Remarks	Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable.
Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A
