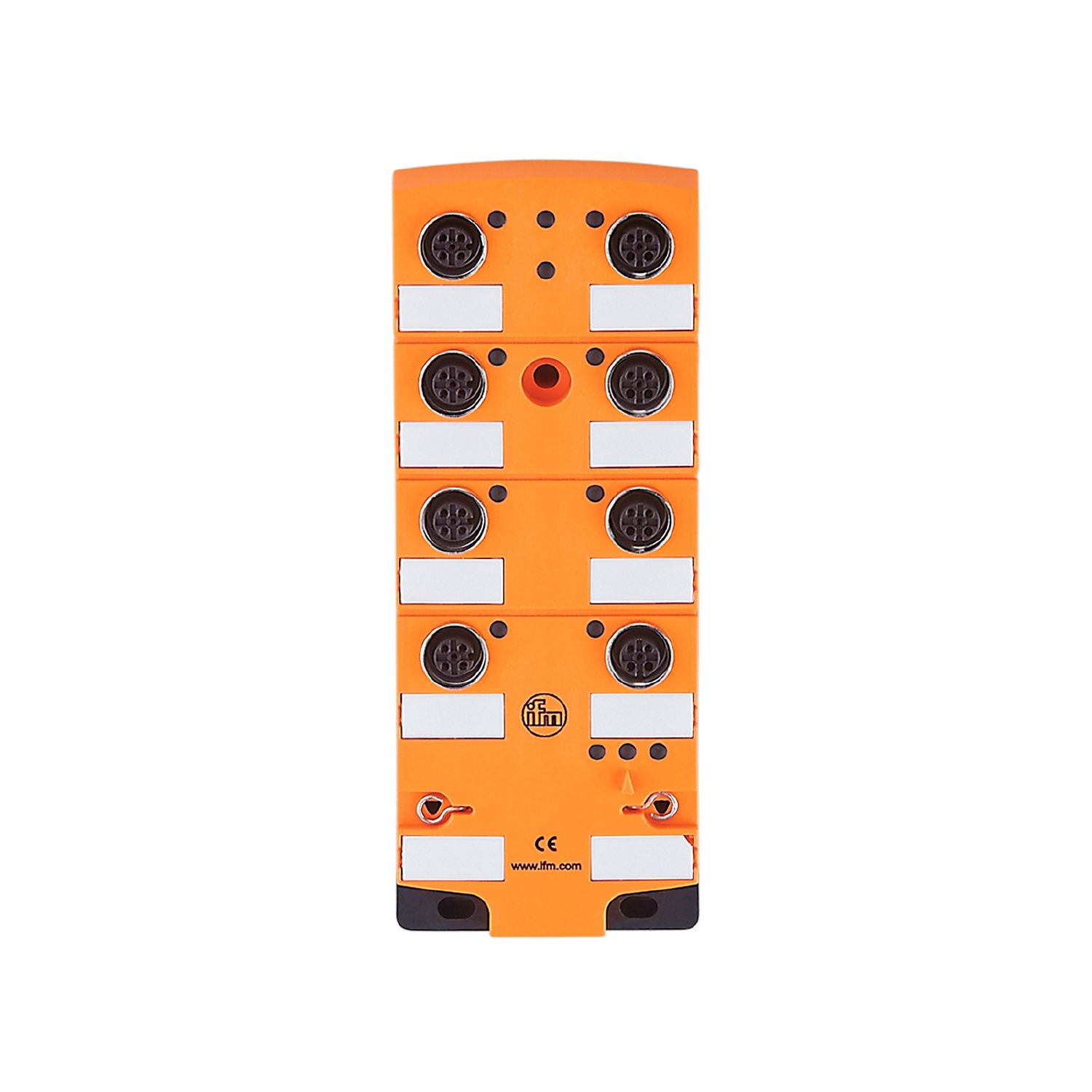

Max. current consumption from additional supply [mA]
4000;(AUX)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
20...30;(DC)
Max. total current rating of inputs [mA]
200
Input current limitation [mA]
15
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V]
10...30;(AUX)
Max. current load per output [mA]
2000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]
4
Short-circuit proof
yes
Electrically separated
yes
Actuator supply outputs
AUX
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-25...80
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 62026-2
EN 50581
MTTF [years]
194
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
Extended addressing mode
no
AS-i master profile
M2; M3; M4
AS-i profile
S-7.F.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
F.E
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1/2
I-1/2 / I-2
I-3/4
I-3/4 / I-4
pin
4
2 4
4
2 4
Output
1
2
3
4
socket
O-1
O-2
O-3
O-4
pin
4
4
4
4
Weight [g]
361
Type of mounting
AS-i flat cables directly connectable
Materials
PA; socket: brass nickel-plated; threaded inserts in the lower part: brass nickel-plated; O-ring: FKM; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
switching status
LED, yellow I1...I4, O1...O4
operation
LED, green AS-i, AUX
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Accessories (optional)
Stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector:M12; coding: A
