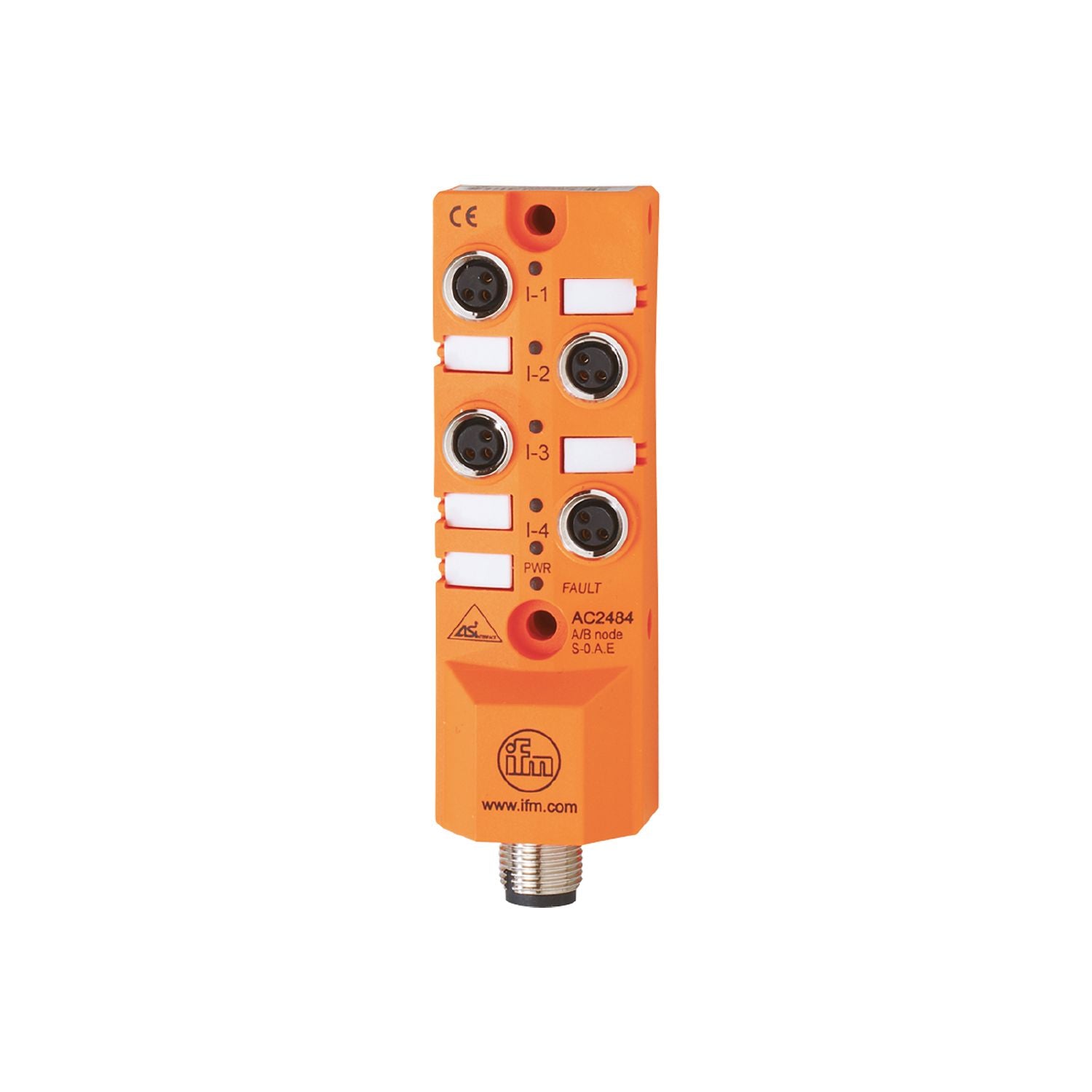

Easy to mount and wire. High shock and vibration resistance thanks to full potting. Clearly visible powerful LEDs for displaying operation, function and error. High protection rating for the requirements of harsh industrial environments. Mechanical end stop to protect the O-ring from destruction
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
230
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(DC)
Max. total current rating of inputs [mA]
180
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Operating conditions
Ambient temperature [°C]
-25...60
Storage temperature [°C]
-25...60
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 65; IP 67; IP 68
Tests / approvals
EMC
EN 62026-2
EN 50581
MTTF [years]
256
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
Extended addressing mode
yes
AS-i master profile
M2; M3; M4
AS-i profile
S-0.A.E
AS-i I/O configuration [hex]
0
AS-i ID code [hex]
A.E
AS-i certificate
100801
Assignment of the data bits
data bit
D0
D1
D2
D3
input
I-1
I-2
I-3
I-4
Assignment of the parameter bits
parameter bit
Designation
P0
not used
P1
peripheral fault indication
: 1
activated
/ 0
deactivated
P2
not used
P3
not used
Weight [g]
110.5
Type of mounting
backplane mounting
Dimensions [mm]
90.5 x 30 x 23.5
Materials
PBT
Displays / operating elements
Display
switching status
LED, yellow I1...I4
operation
LED, green AS-i
errors
LED, red
Electrical connection
Module connection
M12
Accessories
Items supplied
Label tags
Protective caps: 2
Accessories (optional)
Protective cap: M8, E73005
Flat cable insulation displacement connector: 1 m, round cable, E70583
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection - AS-i
Connector: 1 x M12; coding: A
Electrical connection - Inputs
Connector: 4 x M8; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2484-00 — 24.01.2024 —
