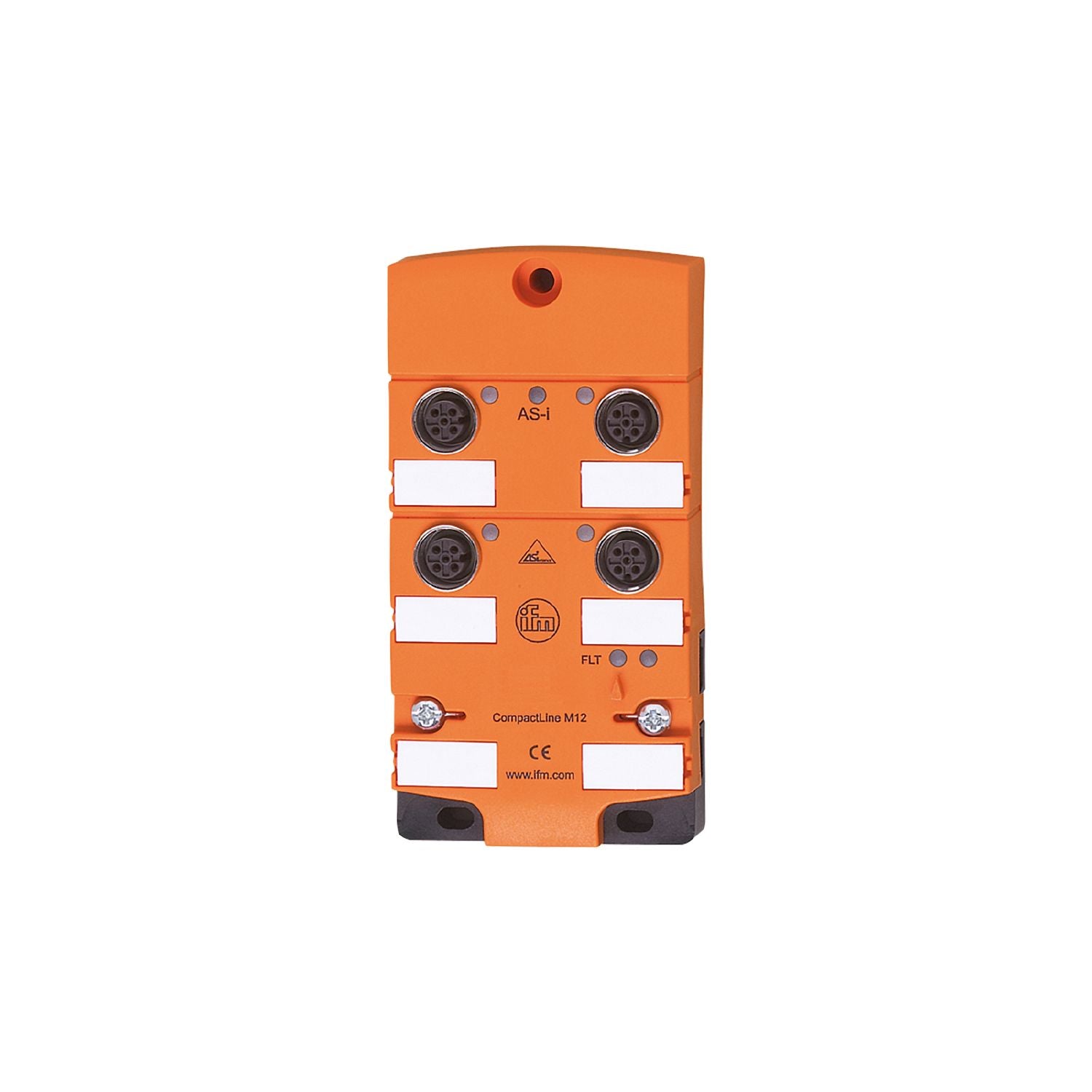

IFM AC2485 - AS-Interface CompactLine module CompactM12 2 DO 2 DI T V4A A/B

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	220
Max. current load total [A]	4
Additional voltage supply [V]	10...30 DC;(AUX)
Max. current consumption from additional supply [mA]	4000;(AUX)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Power supply [V]	20...30;(DC)
Max. total current rating of inputs [mA]	180
Input current limitation [mA]	15
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	2
Circuit	PNP
Voltage range DC [V]	10...30;(AUX)
Max. current load per output [mA]	2000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]	4
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 67;(when flat cables are used E7400x / E7401x)

Tests / approvals

EMC	EN 61000-6-2 EN 62026-2 EN 50581
MTTF [years]	251
UL approval	power supply Class 2

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	IR addressing possible
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-B.A.E
AS-i I/O configuration [hex]	B
AS-i ID code [hex]	A.E
AS-i certificate	128501
Assignment of the data bits	data bit D0 D1 D2 D3 input - - 3 4 socket - - I-3 I-4 pin - - 2+4 2+4 Output 1 2 - - socket O-1 O-2 - - pin 4 4 - -

Weight [g]	292
Type of mounting	AS-i flat cables directly connectable
Dimensions [mm]	118.2 x 60 x 27
Materials	PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); O-ring: EPDM; screws: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated
Sealing material	EPDM

Displays / operating elements

Display	switching status LED, yellow I1...I2, O1...O2 operation LED, green AS-i, AUX errors LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)	Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Remarks	Do not connect any of the following points to an external potential: I-, I+, I1, I2 The connections are electrically connected with the AS-i cable.
Pack quantity	1 pcs.

Electrical connection - Inputs

	Connector:M12; coding: A; Sealing: EPDM

Electrical connection - Outputs

	Connector:M12; coding: A; Sealing: EPDM
