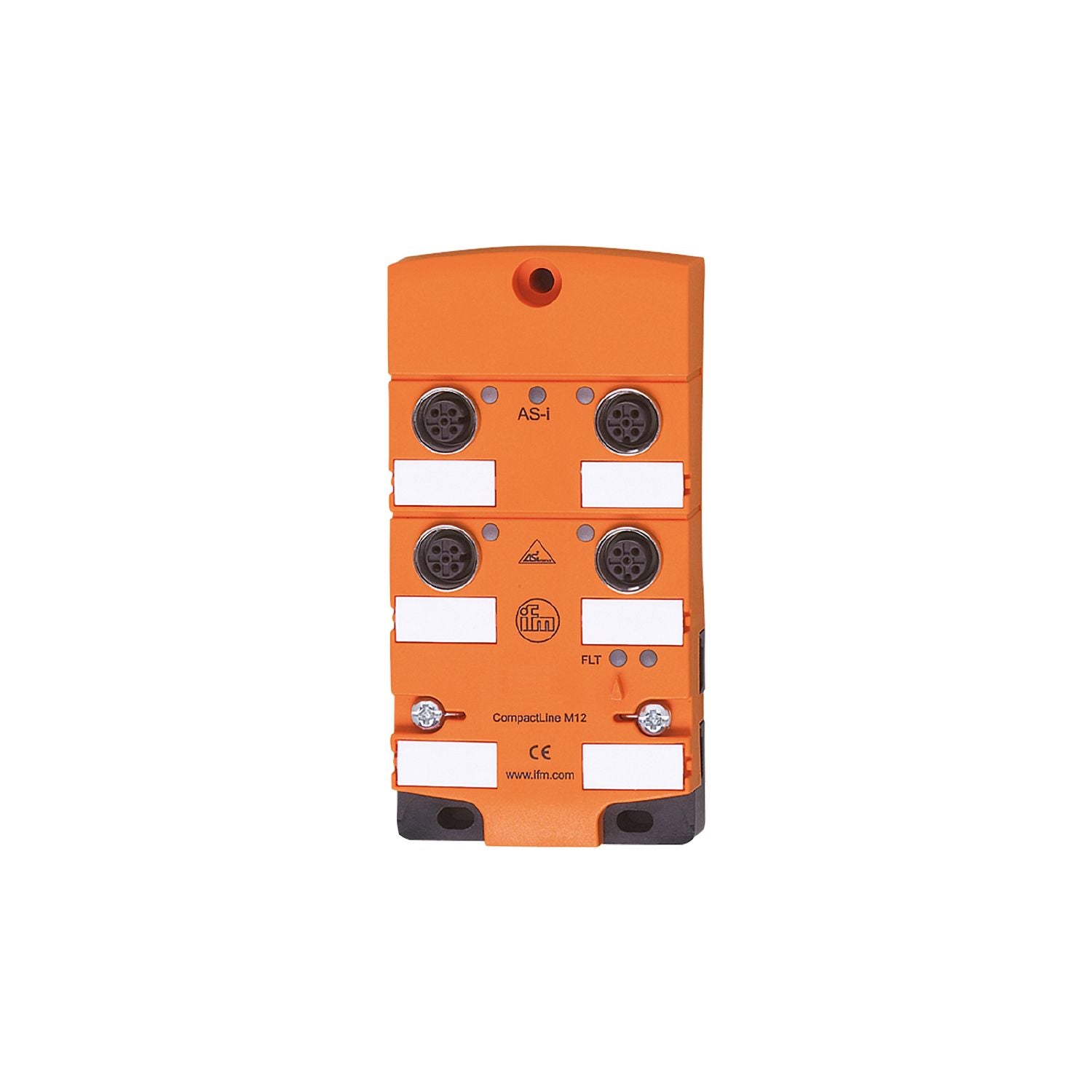

IFM AC2487 - AS-Interface CompactLine module CompactM12 4 DO T V4A A/B

Easy to mount and wire.
High shock and vibration resistance thanks to full potting.
Clearly visible powerful LEDs for displaying operation, function and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Design	only for operation with AS-i masters with the profile M4
Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	75
Max. current load total [A]	4
Additional voltage supply [V]	15...30 DC;(AUX)
Max. current consumption from additional supply [mA]	4000;(AUX)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 4

Outputs

Number of digital outputs	4
Circuit	PNP
Voltage range DC [V]	15...30;(AUX)
Max. current load per output [mA]	2000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]	4
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 67;(when flat cables are used E7400x / E7401x)

Tests / approvals

EMC	EN 61000-6-2 EN 62026-2 EN 50581
MTTF [years]	300
UL approval	power supply Class 2

AS-i classification

AS-i version	3.0
AS-i addressing	IR addressing possible
Extended addressing mode	yes
AS-i master profile	M4
AS-i profile	S-7.A.7
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.7
AS-i certificate	128401
Assignment of the data bits	data bit D0 D1 D2 D3 Output 1 2 3 4 socket O-1 O-2 O-3 O-4 pin 4 4 4 4

Weight [g]	282
Type of mounting	AS-i flat cables directly connectable
Materials	PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); O-ring: EPDM; screws: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display	switching status LED, yellow O1...O4 operation LED, green AS-i, AUX errors LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)	Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2487-00 — 24.01.2024 —
