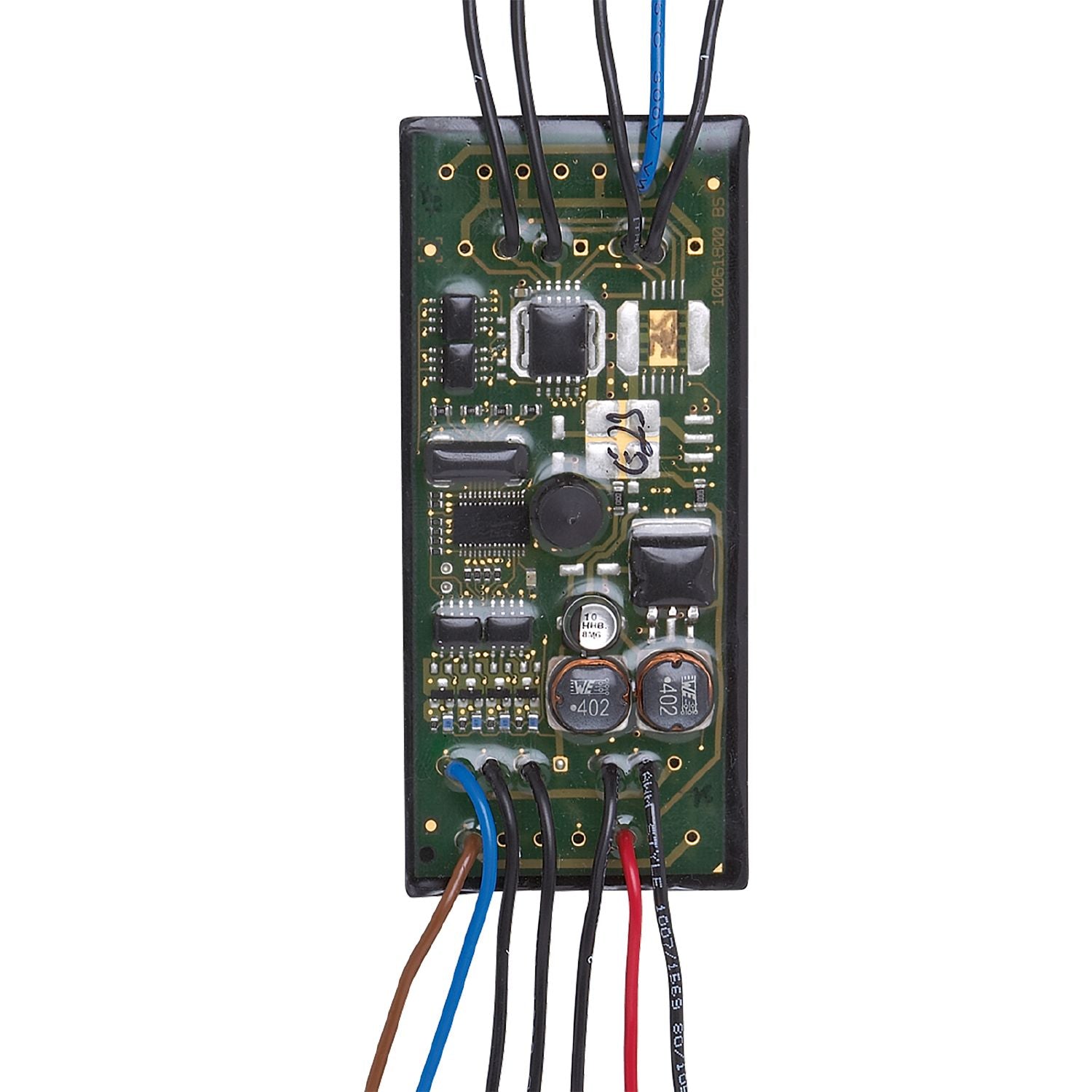

For installation in small housings, control cabinets and operator panels. Simple and fast wiring by means of wire strands. Particularly space-saving design. For integration of mechanical switches into AS-i networks. AS-i connection for four control and signalling devices
Application
housing for panel mounting
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Max. current load total [A]
0.2;(total current for all inputs and outputs supplied from AS-i: 200 mA)
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
15...30;(DC)
Max. total current rating of inputs [mA]
200
Input current High [mA]
> 3
Input current Low [mA]
< 1.5
Switching level high [V]
> 10
Digital inputs protected against short circuits
yes
Outputs
Electrical design
PNP
Number of digital outputs
4
Circuit
PNP
Max. current load per output [mA]
50
Short-circuit proof
yes
Electrically separated
yes
Actuator supply outputs
AS-i
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 20
Tests / approvals
EMC
EN 50295
MTTF [years]
322
AS-i classification
AS-i version
2.1
Extended addressing mode
no
AS-i master profile
M2; M3; M4
AS-i profile
S-7.0.F
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
0.F
Weight [g]
115
Type of mounting
for Moeller housing RMQ-Titan: I3M, I4M, I6M
Displays / operating elements
Display
operation
LED, green
Remarks
The PCB can also be integrated into an RMQ22 housing.
Do not connect any of the following points to an external potential:
O-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Install the unit so that exposed parts cannot be touched.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 0.2 m
