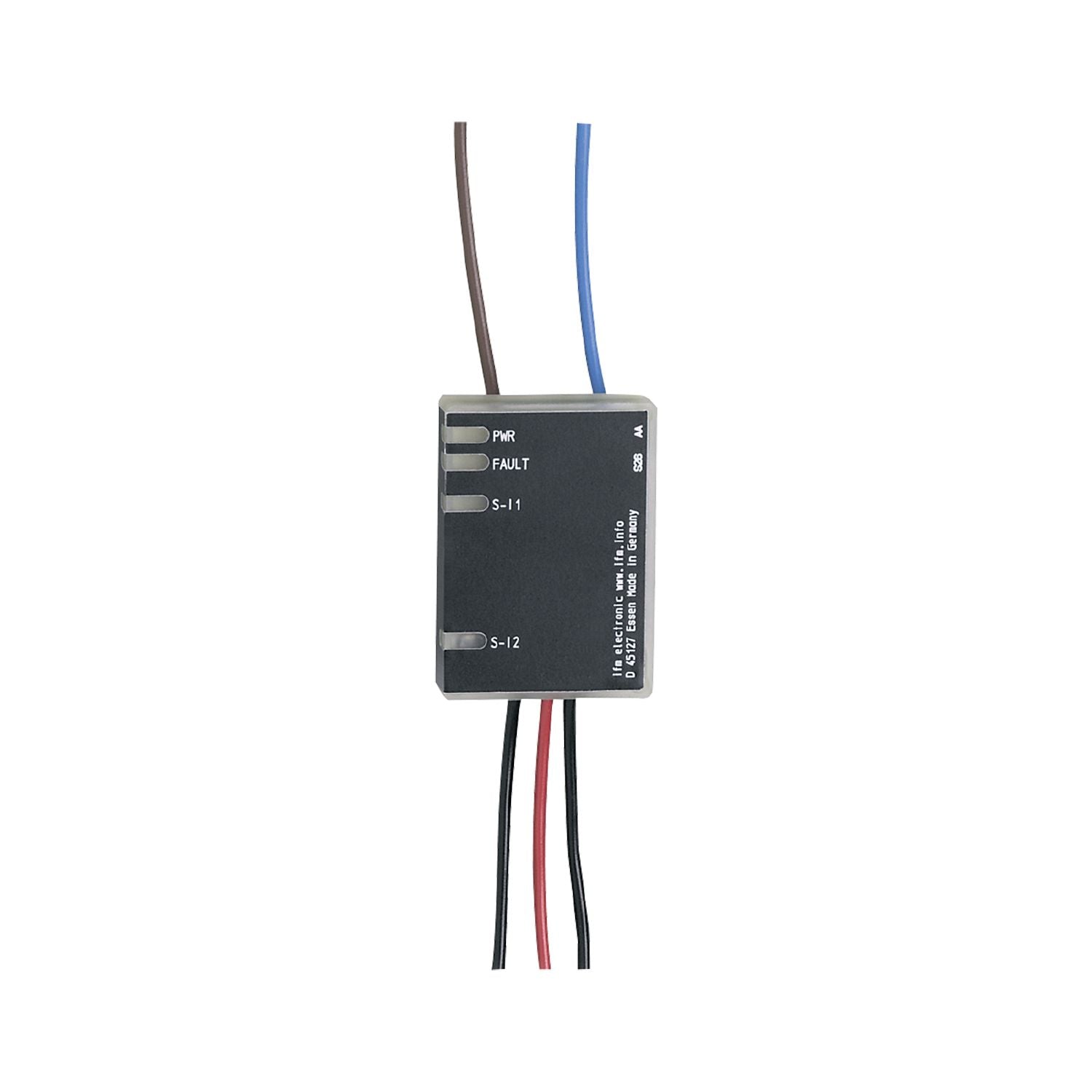

IFM AC2729 - AS-Interface PCB module AS-i pcb 2-DI/1-DO

For installation in small housings, control cabinets and operator panels.
Simple and fast wiring by means of wire strands.
Particularly space-saving design.
For integration of mechanical switches into AS-i networks.
AS-i connection for two control and signalling devices

Application	housing for panel mounting

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 50
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	18...30;(DC)
Input current High [mA]	> 5
Digital inputs protected against short circuits	no

Outputs

Electrical design	PNP
Voltage range DC [V]	DC
Max. current load per output [mA]	10
Short-circuit proof	no
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 20;(depending on the housing)

Tests / approvals

EMC	EN 50295
MTTF [years]	842

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E
AS-i certificate	75101
Assignment of the data bits	data bit D0 D1 D2 D3 Designation I-1 / O-1 I-2 - -

Weight [g]	58.5

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.2 m
