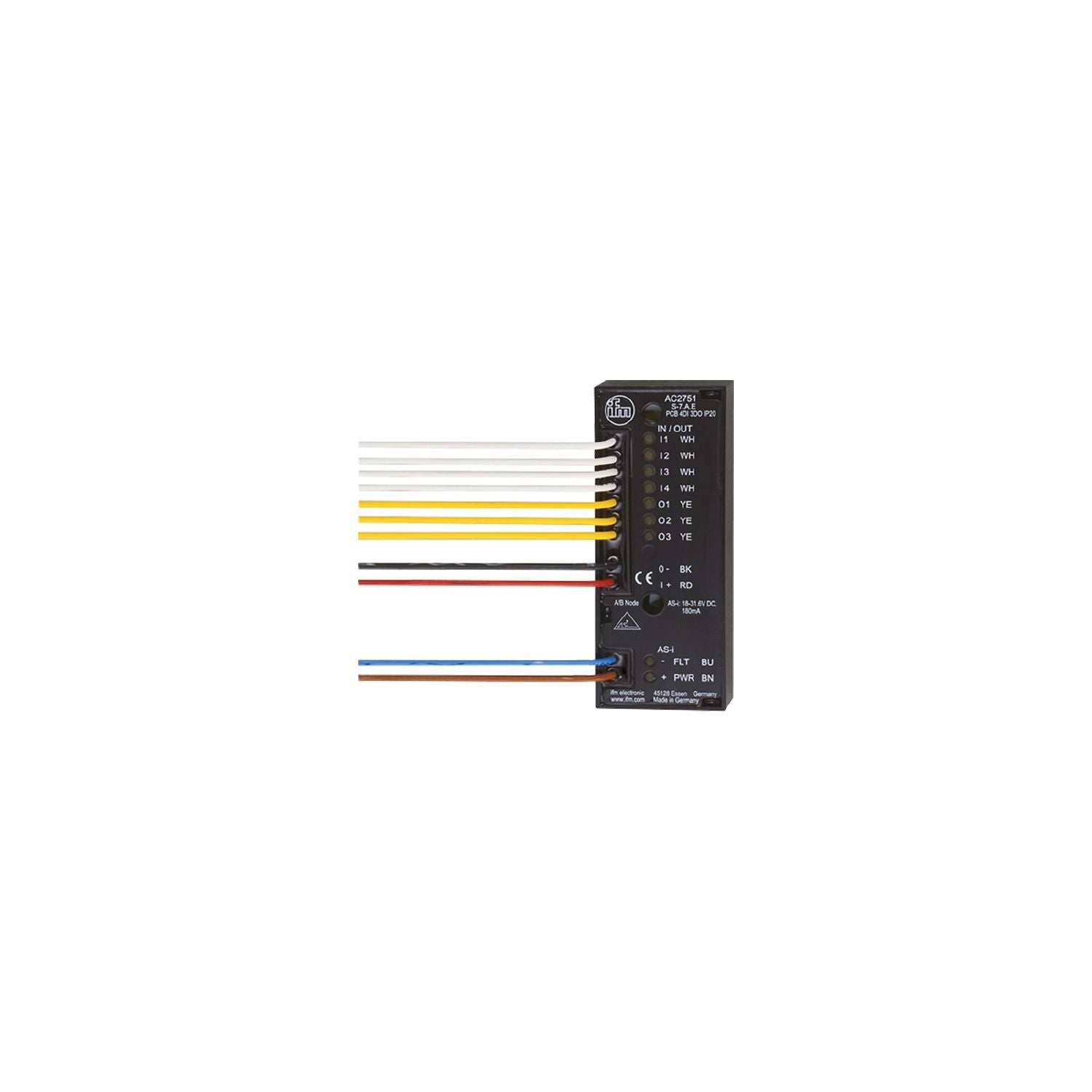

For installation in small housings, control cabinets and operator panels. Simple and fast wiring by means of wire strands. Particularly space-saving design. For integration of mechanical switches into AS-i networks. AS-i connection for three control and signalling devices
0.15;(total current for all inputs and outputs supplied from AS-i: 150 mA)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 3
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(DC)
Max. total current rating of inputs [mA]
150
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Electrical design
PNP
Number of digital outputs
3
Circuit
PNP
Voltage range DC [V]
18...30;(DC)
Max. current load per output [mA]
100;(utilisation category DC-13 (control of electromagnets): 2,5 W (IEC 60947-5-1))
Max. current load outputs total [A]
0.15
Short-circuit proof
yes
Electrically separated
yes
Actuator supply outputs
AS-i
Operating conditions
Ambient temperature [°C]
-25...55
Protection
IP 20
Tests / approvals
EMC
EN 50295
MTTF [years]
315
AS-i classification
AS-i version
3.0
Extended addressing mode
yes
AS-i master profile
M2; M3; M4
AS-i profile
S-7.A.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.E
AS-i certificate
102401
Weight [g]
72.5
Type of mounting
installation in a surface-mounted housing
Dimensions [mm]
31.1 x 12 x 76.6
Materials
housing: PC potted
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Remarks
A watchdog function switches the outputs off if there is no communication on the AS-i line.
Install the unit so that exposed parts cannot be touched.
Installation in a surface-mounted housing with the dimensions of 68 x 136 x 53 mm (LxWxH), e.g. Schneider Electric Harmony, XALD03, XALD04
Do not connect any of the following points to an external potential:
0-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
can be used up to a height of 2000 metres above sea level
Pack quantity
1 pcs.
Electrical connection
Cable: 0.2 m, PVC;, PVC
