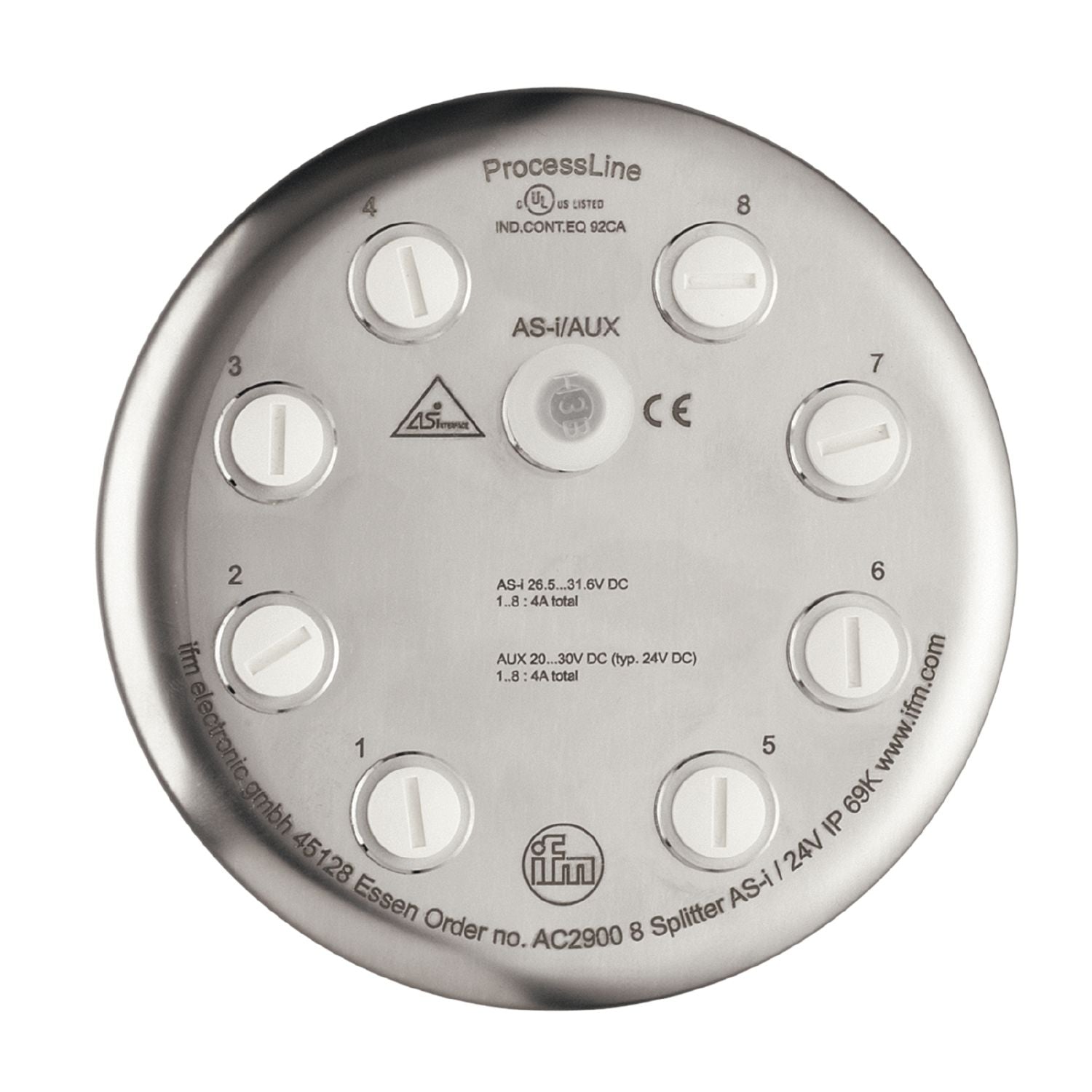

IFM AC2900 - AS-Interface ProcessLine module ProcessLine 8 SB IP69K

Specially for the use in wet areas of the food and beverage industry.
Hygienic design without corners and edges.
Resistant to high-pressure cleaning with aggressive cleaning agents.
AS-i and 24 V supply via a common M12 connector

Application	hygienic and wet areas in the food industry

Operating voltage [V]	26.5...31.6 DC
Max. current load per module/slot [A]	4;(AS-i: 4 A; AUX: 4 A)
Additional voltage supply [V]	20...30 DC;(AUX)

Operating conditions

Ambient temperature [°C]	-5...70
Storage temperature [°C]	-5...70
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Pollution degree	2

Tests / approvals

EMC	EN 62026-2 EN 61000-6-2

Weight [g]	613.5
Dimensions [mm]	Ø 137.3 / L = 80
Materials	housing: stainless steel; O-ring: EPDM; Protective caps: PP
Sealing material	EPDM

Electrical connection

Module connection	M12

Accessories

Items supplied	Protective cap: 8 x M12, E70297
Accessories (optional)	Torque wrench:, E70390

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2...1.4 Nm; Maximum cable length: 2 m

Electrical connection - socket

	Connector: 8 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2...1.4 Nm; Maximum cable length: 20 m
