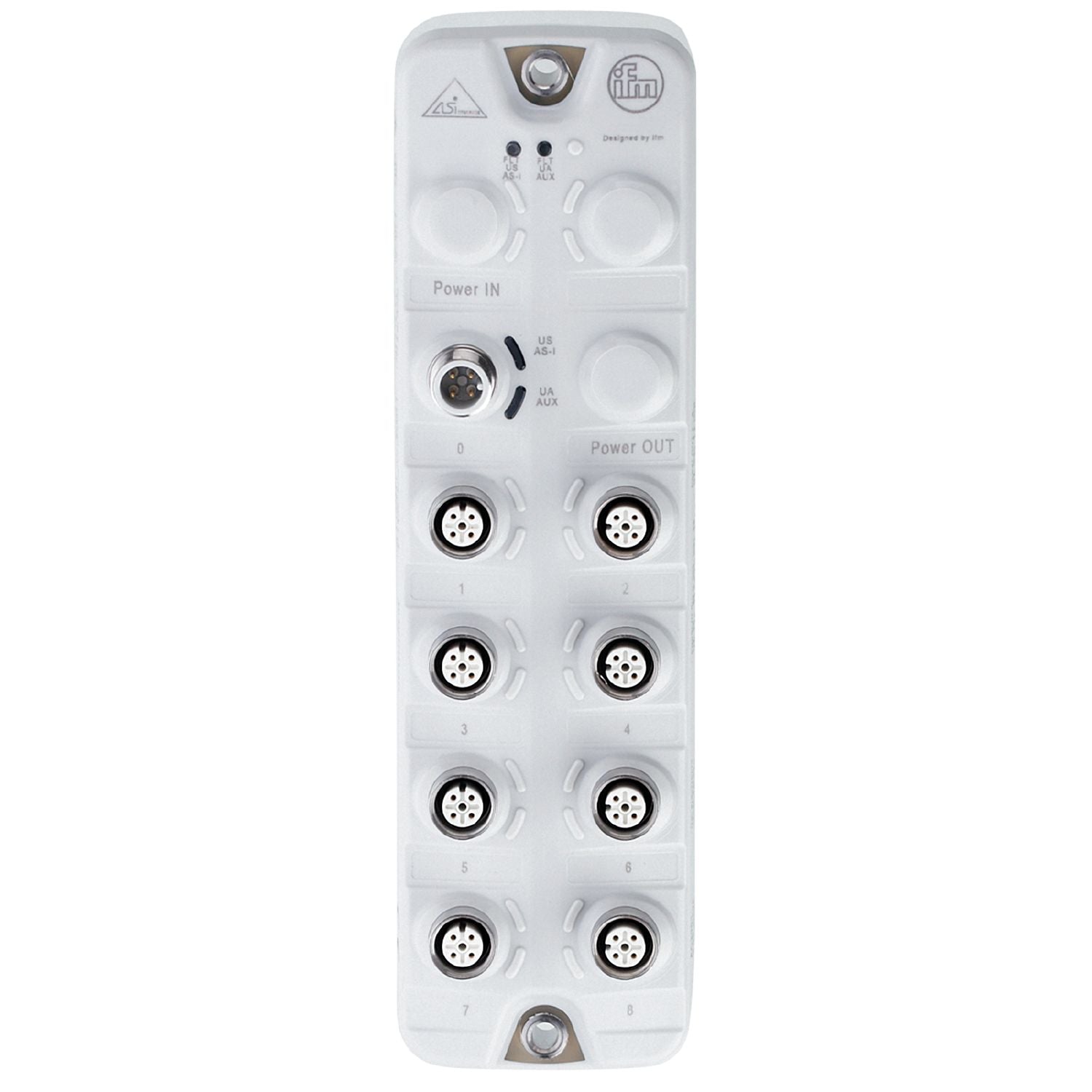

IFM AC2951 - passive power distributor ProcessLine 8SB IP69K

Design	AS-i oder IO-Link Spannungsverteiler
Application	hygienic and wet areas in the food industry

Protection class	III
Overcurrent detection	yes;(4400 mA ± 200 mA)

Operating voltage [V]	18...31.6 DC;(AS-i)
Current consumption [mA]	4000;(AS-i)
Additional voltage supply [V]	15...30 DC;(AUX)
Max. current consumption from additional supply [mA]	4000;(AUX)

Operating voltage [V]	20...30 DC;(US)
Current consumption [mA]	4000;(US)
Additional voltage supply [V]	20...30 DC;(UA)
Max. current consumption from additional supply [mA]	4000;(UA)

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	4000
Protection	IP 65; IP 66; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 62026-2 IEC 61000-6-2
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 DIN EN 60068-2-6
MTTF [years]	379

Weight [g]	391.2
Dimensions [mm]	208 x 59.3 x 38.4
Materials	housing: PA grey; plugs and sockets: stainless steel (1.4404 / 316L)

Displays / operating elements

Display	operation LED, green AS-i / AUX / US / UA fault LED, red

Electrical connection

Module connection	M12

Pack quantity	1 pcs.

Electrical connection - Power IN

AS-i operation	Connector:M12; coding: A; Tightening torque: 0.6...0.8 Nm

Electrical connection - Power OUT

AS-i operation 1...8	Connector:M12; coding: A; Tightening torque: 0.6...0.8 Nm
