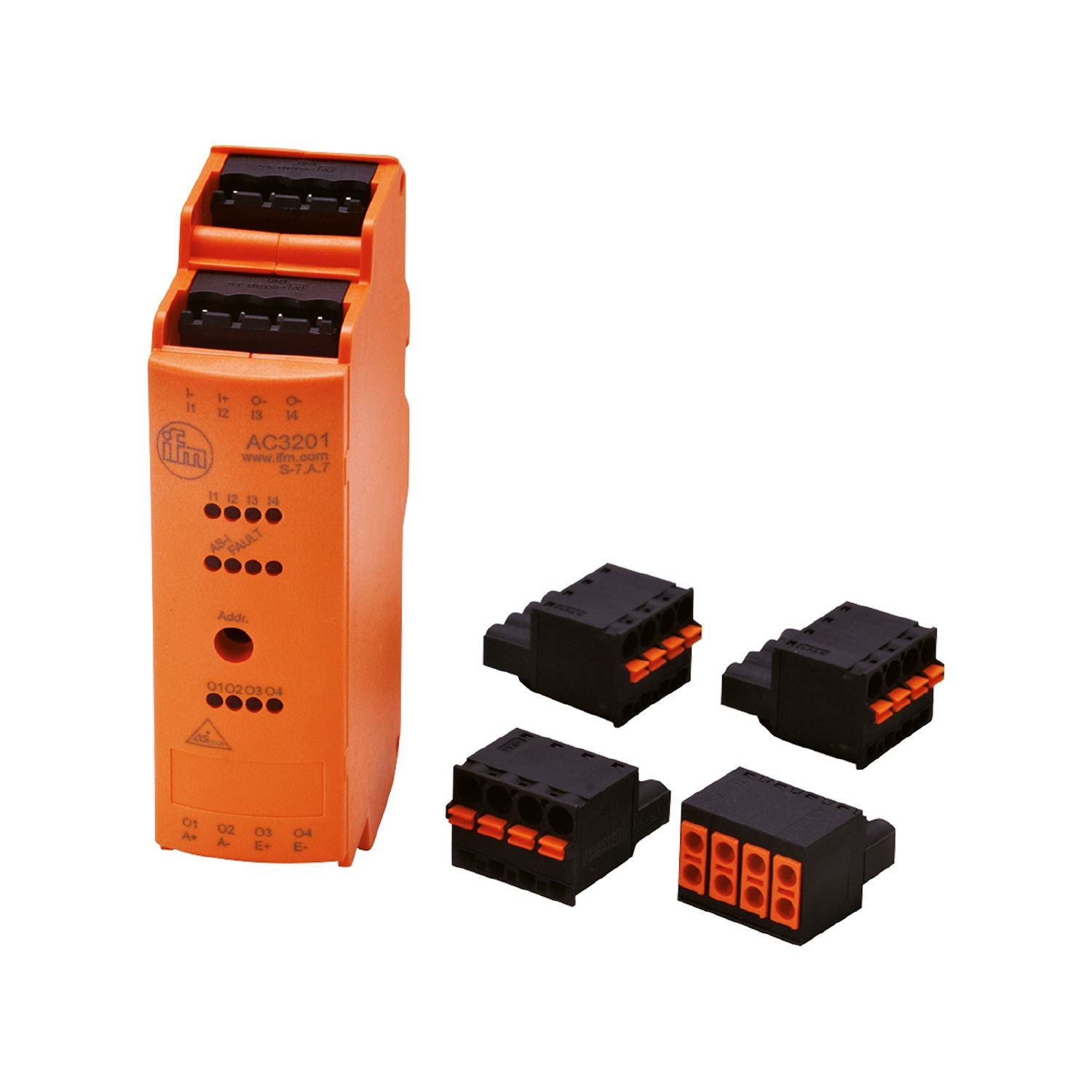

For use in control cabinets. Simple and fast wiring by means of cage clamps. Particularly space-saving design. Double terminals for looping through the voltage supply. Clearly visible powerful LEDs for displaying operation, switching status and function
Design
only for operation with AS-i masters with the profile M4
Application
Installation in control cabinets
Operating voltage [V]
18...31.6 DC
Max. current consumption from AS-i [mA]
250
Additional voltage supply [V]
20...30 DC;(AUX)
Max. current consumption from additional supply [mA]
4000;(AUX)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(DC)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V]
20...30;(AUX)
Max. current load per output [mA]
1000;(utilisation category DC-12: 700 mA; utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]
4
Short-circuit proof
yes
Electrically separated
yes
Actuator supply outputs
AUX
Operating conditions
Ambient temperature [°C]
-25...60
Note on ambient temperature
the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: > 40 °C
Storage temperature [°C]
-25...75
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 20
Protection rating terminals
IP 20
Pollution degree
2
Tests / approvals
EMC
EN 62026-2
EN 61000-6-2
EN 61000-6-3
MTTF [years]
261
Notes
The device shall be supplied from an isolating source.; This voltage source must have a secondary UL-listed fuse (see enclosed sheet).; Alternatively, a class 2 power supply can be used to supply AUX.
AS-i classification
AS-i version
3.0
AS-i addressing
addressing socket
Extended addressing mode
yes
AS-i master profile
M4
AS-i profile
S-7.A.7
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.7
AS-i ID1 code [hex]
7;(fixed)
AS-i certificate
124401
Assignment of the data bits
data bit
D0
D1
D2
D3
input
I-1
I-2
I-3
I-4
Output
O-1
O-2
O-3
O-4
Weight [g]
136.5
Type of mounting
mounting on DIN rail
Materials
plastics; PC-GF20
Displays / operating elements
Display
switching status
LED, yellow I1...I4, O1...O4
operation
LED, green AS-i, AUX
errors
LED, red
Accessories
Items supplied
cage clamps
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection
Connection
pin headers: 4 x ; Spacing: 5.0 mm
