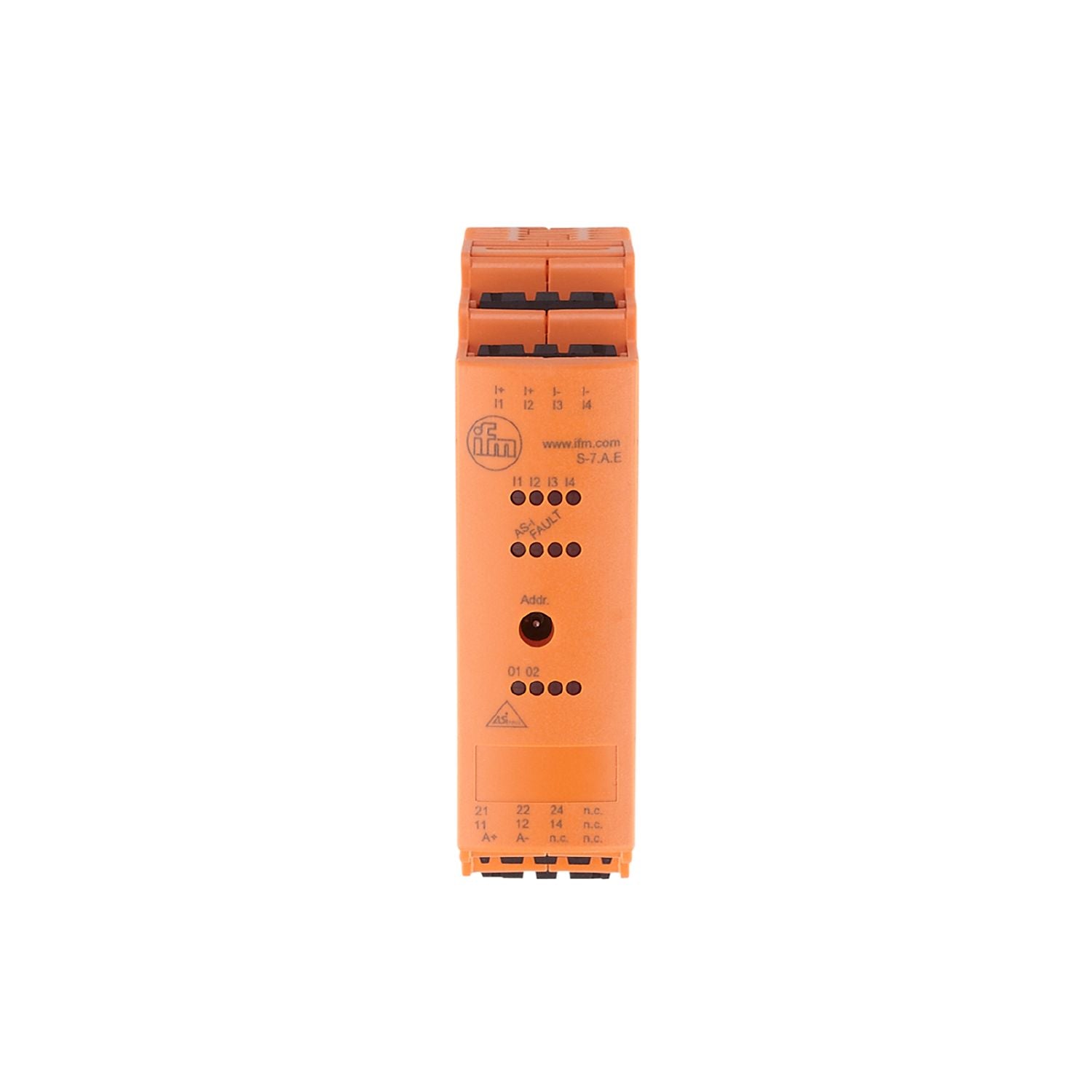

Number of digital inputs: 4; Number of relay outputs: 2
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(DC)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Voltage range DC [V]
24
Voltage range AC [V]
10...240
Max. current load per output [mA]
6000;(ohmic resistance)
Max. current load outputs total [A]
6;(ohmic resistance)
Number of relay outputs
2
Short-circuit proof
no
Electrically separated
yes
Operating conditions
Ambient temperature [°C]
-25...65
Storage temperature [°C]
-25...75
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 20
Protection rating terminals
IP 20
Pollution degree
2
Tests / approvals
EMC
EN 62026-2
EN 61000-6-2
EN 61000-6-3
MTTF [years]
317
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
yes
AS-i master profile
M2; M3; M4
AS-i profile
S-7.A.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.E
Assignment of the data bits
data bit
D0
D1
D2
D3
input
I-1
I-2
I-3
I-4
Output
O-1
O-2
-
-
Weight [g]
194.2
Type of mounting
mounting on DIN rail
Materials
plastics; PC-GF20
Displays / operating elements
Display
switching status
LED, yellow I1...I4, O1...O2
operation
LED, green AS-i
errors
LED, red
Accessories
Items supplied
cage clamps
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection
Connection
pin headers: 4 x ; Spacing: 5.0 mm
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC3256-00 — 17.03.2022 —
