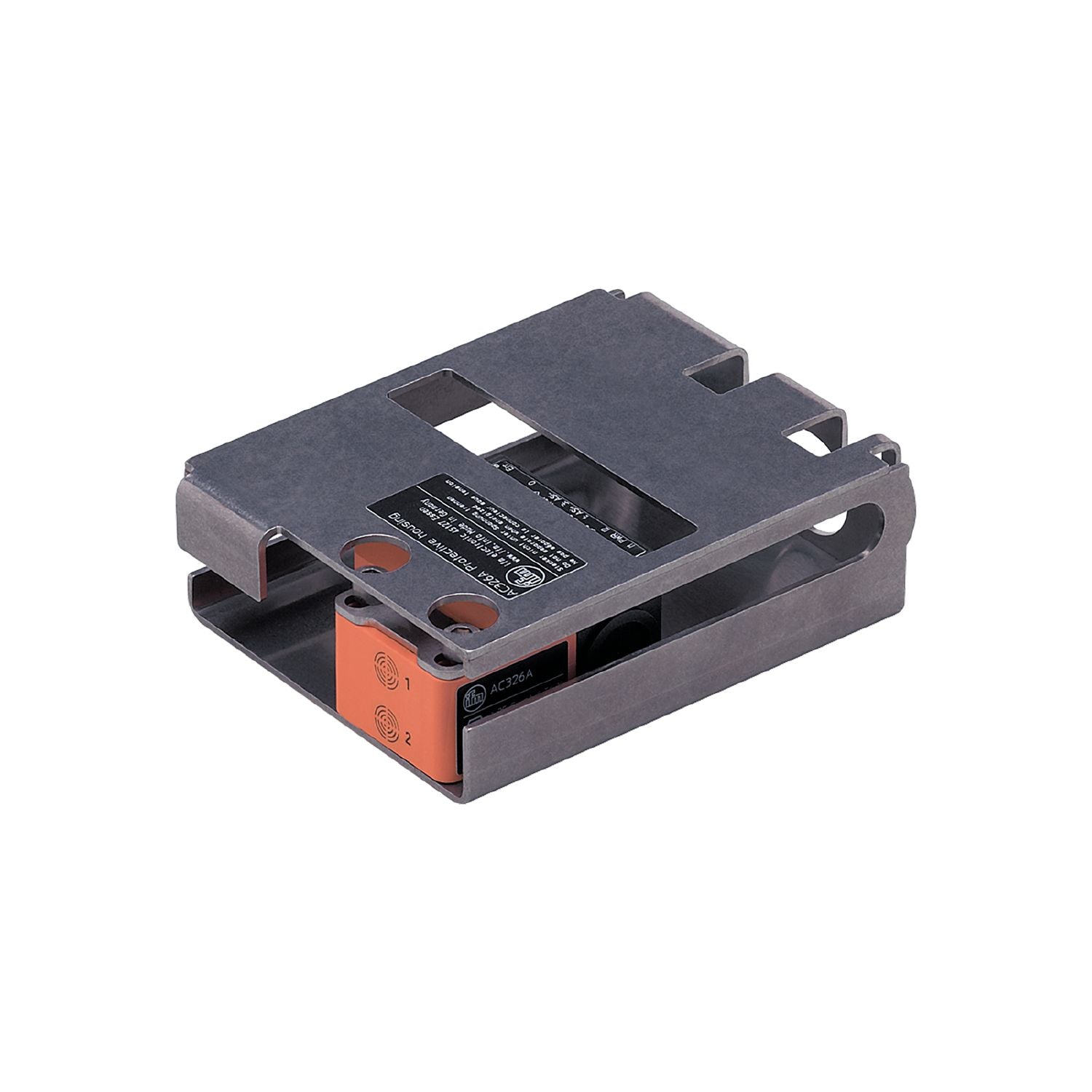

IFM AC327A - AS-Interface dual sensor for pneumatic valve actuators DUAL SENSOR T6 2SI 2DO T 3D

For monitoring valve positions.
For reliable position feedback on valve actuators.
With triggering and fault monitoring of the solenoid valve.
Non-contact and self-cleaning system.
Quick and secure mounting with only three screws

Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 260
Protection class	III

Detection zone

Sensing range [mm]	4
Operating distance target puck [mm]	74

Operating conditions

Ambient temperature [°C]	-10...50
Protection	IP 5x;(when used outside the hazardous area: IP 67)

Tests / approvals

ATEX marking	II 3D Ex tc IIIB T85°Dc IP5X X
Note on ATEX marking	only in conjunction with the impact protection housing
EMC	EN 50295

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E

Weight [g]	783.5
Dimensions [mm]	55 x 60 x 35
Materials	housing: PBT orange; cover: PC black; Impact protection housing: stainless steel

Displays / operating elements

Display	operation 1 x LED, green function 1 x LED, yellow

Accessories

Items supplied	Impact protection housing Mounting plate: 1 socket head screws: 2 x M5 x 35

Remarks	The outputs must not be set simultaneously if the total load current exceeds 100 mA.
Pack quantity	1 pcs.

Electrical connection - plug

Elektrischer Anschluss	Connector: 1 x M12; coding: A; Moulded body: stainless steel

Electrical connection - socket

Connection	Connector: 1 x M12; coding: A; Moulded body: stainless steel

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — AC327A — 19.01.2012 —
