Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. For applications in hazardous areas. Robust M12 connectors for connecting sensors and actuators
Application

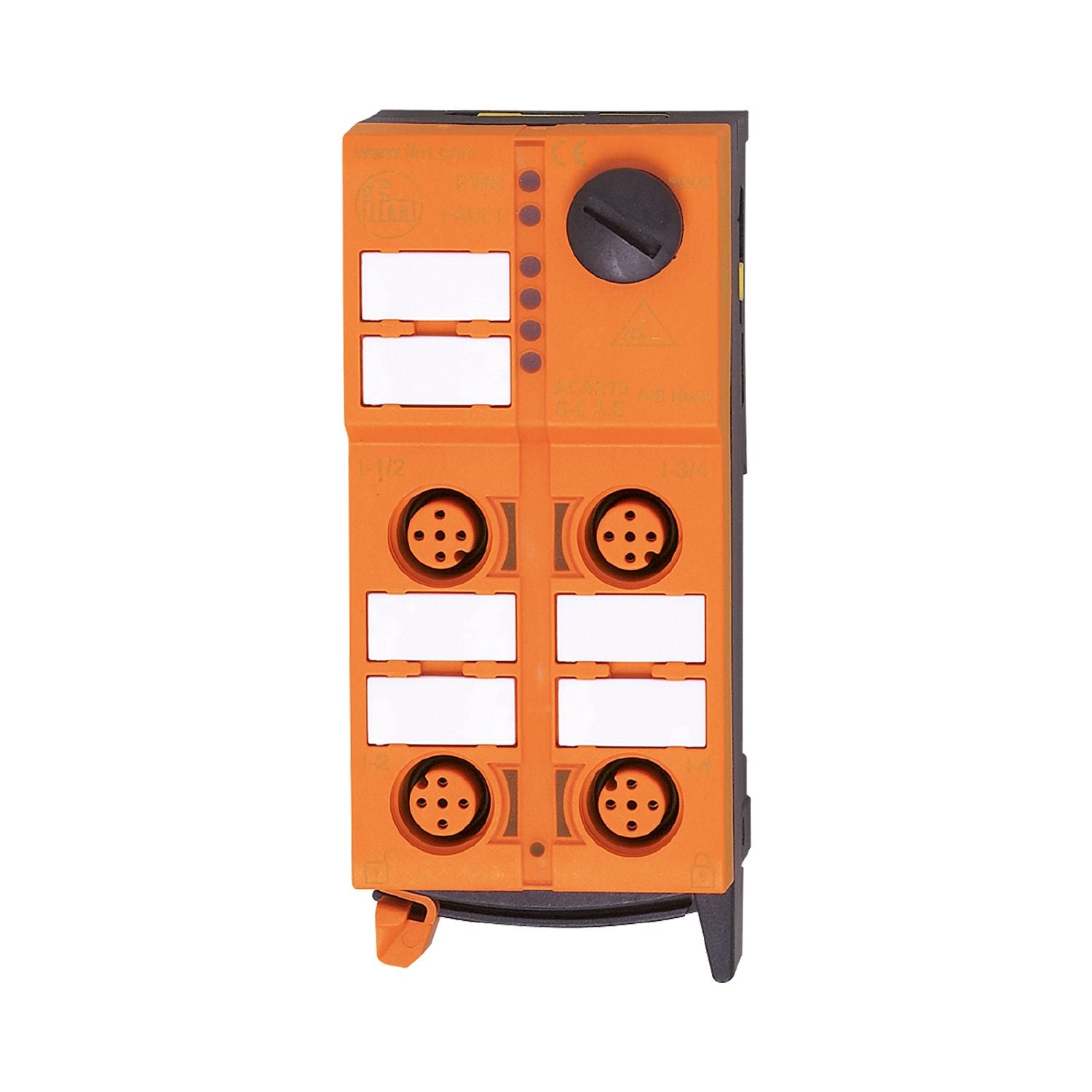

AS-i ATEX module
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
50
Max. current load total [A]
2
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 4
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V]
15...30;(to PELV; via flat cable)
Max. current load per output [mA]
1000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Short-circuit proof
yes
Electrically separated
yes
Operating conditions
Ambient temperature [°C]
-10...50
Protection
IP 50
Tests / approvals
ATEX marking
II 3D Ex tc IIIB T80°C Dc X IP50
EMC
EN 50295
IEC 61000-6-2
MTTF [years]
211
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i master profile
M2; M3; M4
AS-i profile
S-8.0.E
AS-i I/O configuration [hex]
8
AS-i ID code [hex]
0.E
AS-i certificate pending
yes
Assignment of the data bits
data bit
D0
D1
D2
D3
Output
1
2
3
4
socket
O-1/2
O1/2 O-2
O-3/4
O-3/4 O-4
pin
4
2 4
4
2 4
Weight [g]
228.5
Type of mounting
AS-i flat cables directly connectable
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Impact protection housing:, E7000A
Remarks
Mechanical protection has to be implemented.
Otherwise the unit must be installed together with the impact protection housing (E7000A).
Pack quantity
1 pcs.
Electrical connection
Connection
quick mounting technology for AS-i flat cable: ; three orientations possible
