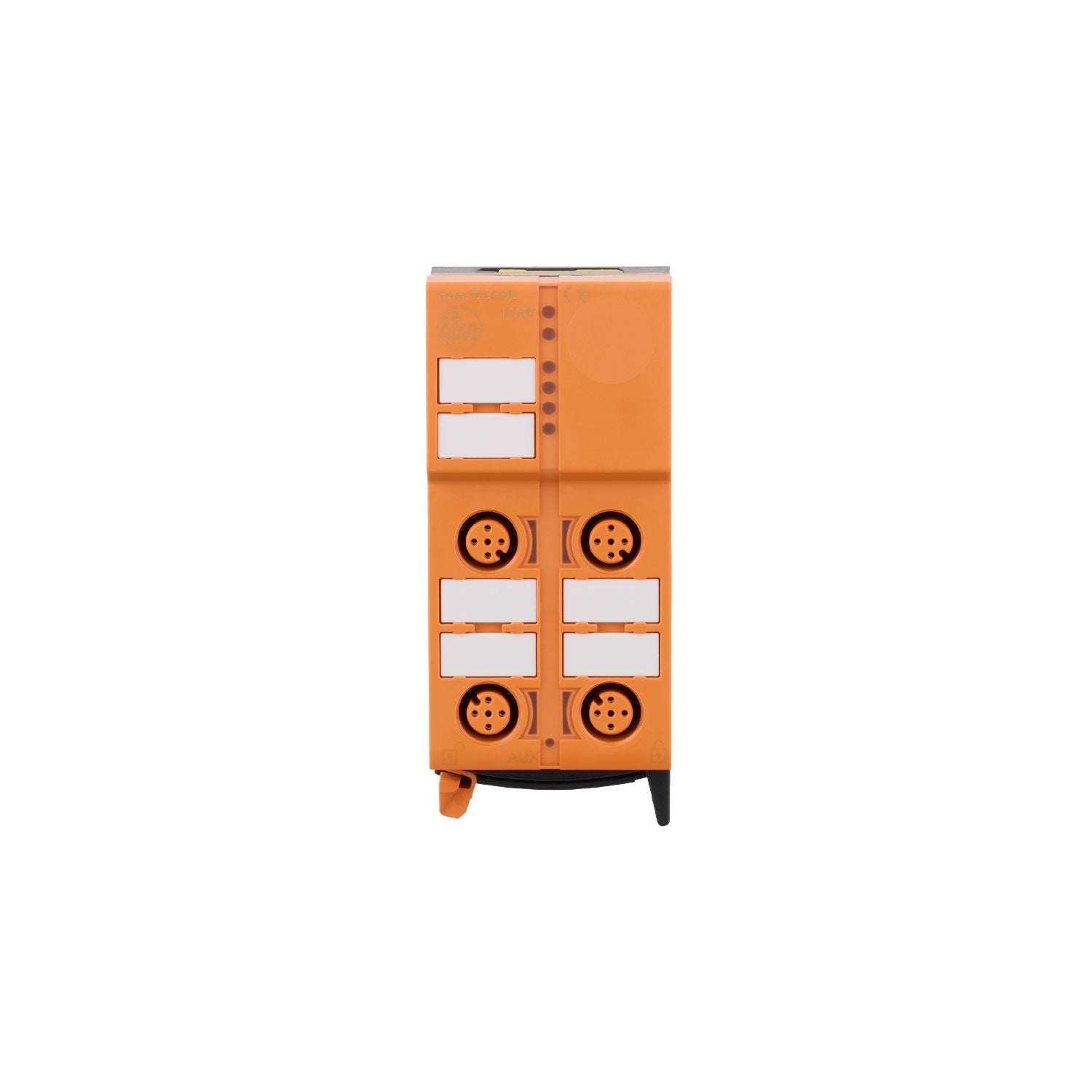

IFM AC5200 - AS-Interface ClassicLine module with quick mounting technology ClassicLine 4SB IP67

Easy toolless installation and wiring thanks to quick mounting technology.
Three freely selectable directions of the flat cable.
Clearly visible powerful LEDs for displaying operation, switching status and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Application	field installation

Operating voltage [V]	26.5...31.6 DC;("supply class 2" to cULus)
Max. current load per module/slot [A]	2;(AS-i: 2; AUX: 2)
Additional voltage supply [V]	15...30 DC;(AUX ; "supply class 2" to cULus)

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 50295 IEC 61000-6-2
MTTF [years]	10284

Weight [g]	152.5
Type of mounting	AS-i flat cables directly connectable
Dimensions [mm]	103 x 45 x 44.7
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	lower part
Accessories (optional)	Protective cap: M12, E73004

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable: ; three orientations possible
	Connector:M12; coding: A
