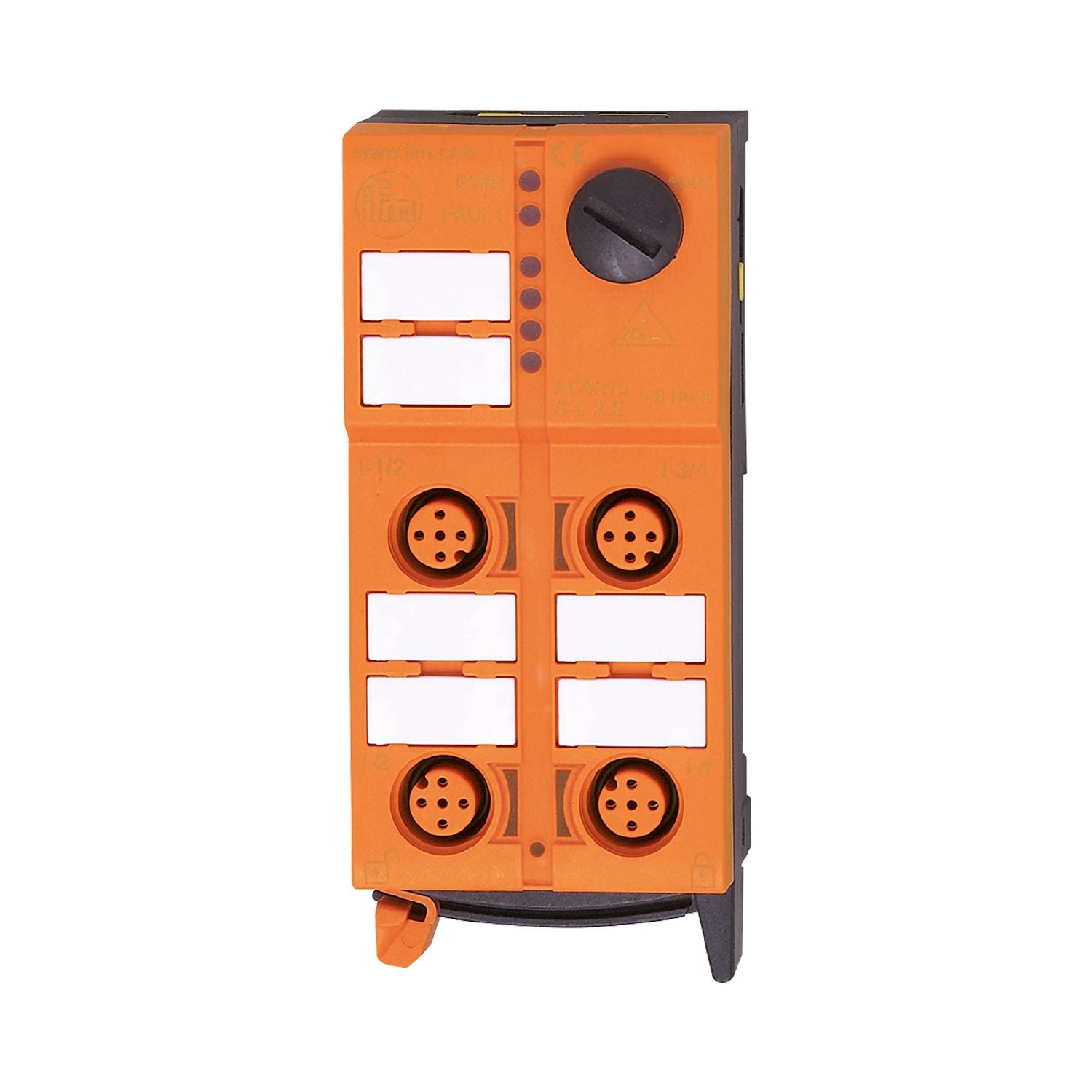

IFM AC5213 - AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DO-Y IP67

Easy toolless installation and wiring thanks to quick mounting technology.
Three freely selectable directions of the flat cable.
Clearly visible powerful LEDs for displaying operation, switching status and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Application	field installation

Operating voltage [V]	26.5...31.6 DC;("supply class 2" to cULus)
Max. current consumption from AS-i [mA]	50
Max. current load total [A]	4
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 4

Outputs

Number of digital outputs	4
Circuit	PNP
Voltage range DC [V]	15...30;(to PELV; via flat cable)
Max. current load per output [mA]	2000;(utilisation category DC-13 (control of electromagnets): 40 W (IEC 60947-5-1))
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 50295 IEC 61000-6-2
MTTF [years]	201

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	no
AS-i master profile	M2; M3; M4
AS-i profile	S-8.0.E
AS-i I/O configuration [hex]	8
AS-i ID code [hex]	0.E
Assignment of the data bits	data bit D0 D1 D2 D3 Output 1 2 3 4 socket O-1/2 O1/2 O-2 O-3/4 O-3/4 O-4 pin 4 2 4 4 2 4

Weight [g]	183.5
Type of mounting	AS-i flat cables directly connectable
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	lower part
Accessories (optional)	Protective cap: M12, E73004

Pack quantity	1 pcs.

Electrical connection

Connection	quick mounting technology for AS-i flat cable: ; three orientations possible
Connection	Connector:M12

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5213-00 — 24.01.2024 —
